H. E. Williams, Inc.
CMH. LED Contour Multi-Function Headwall.
 Configure
 Add to project

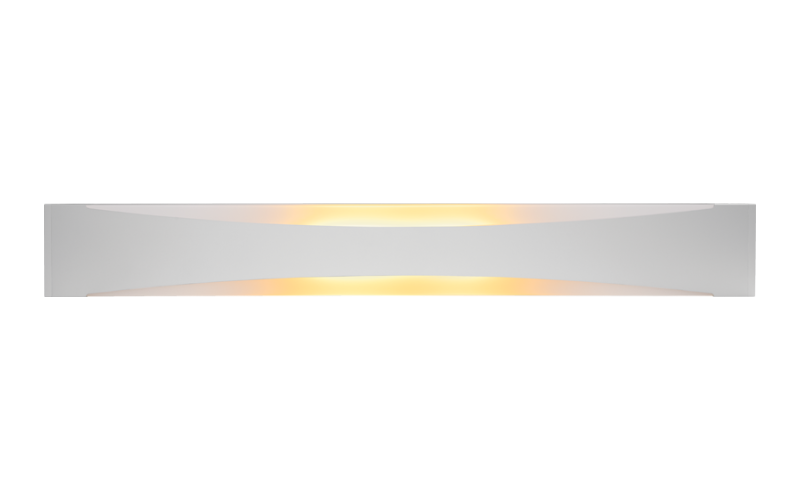

H. E. Williams, Inc.. CMH. LED Contour Multi-Function Headwall.

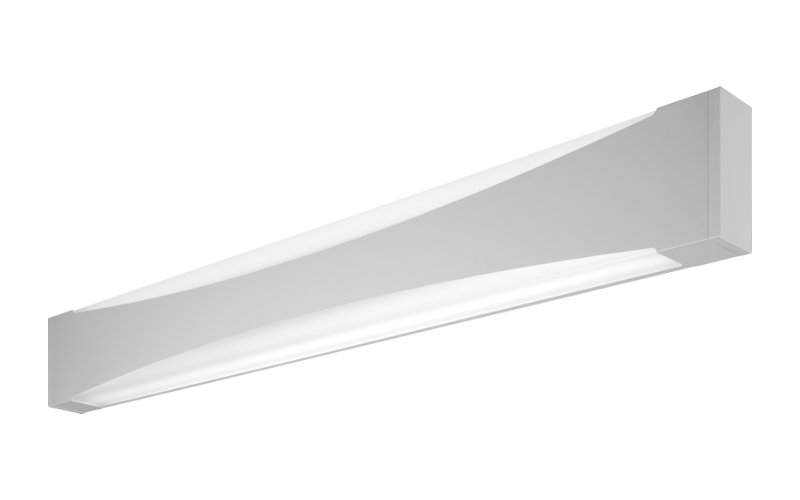

H. E. Williams, Inc.. CMH. LED Contour Multi-Function Headwall.
H. E. Williams, Inc.. CMH. LED Contour Multi-Function Headwall.
RESOURCES
DESCRIPTION
  • Contoured architectural form integrates seamlessly with modern hospital interiors
  • Low-profile style meets ADA compliance standards
  • Meets IES recommendations for patient rooms
  • Independently controlled up and down modes create personalized ambiance
  • Low-voltage controller and pull chain options provide patients with bedside lighting control
  • Tamper-resistant screws are provided for vandal-prone areas
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Amber color temperature night light option provides gentle illumination while supporting natural sleep patterns
  • Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
  • Low-voltage controller wall plate accessories provide easy access for healthcare personnel
  • Six standard finish options and a wide selection of custom colors complement architectural elements
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 5/8"
    L: 2 Ft3 Ft4 Ft
    H: 6 1/2"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000K
  • CRI
    80 90
  • Watt(Approx)
    23.8 W33 W42.9 W41.6 W65.2 W84 W
  • Lumens(Approx)
    2638 Lm3826 Lm5008 Lm5118 Lm7634 Lm10016 Lm
  • Optics
    DirectIndirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
  • Controls/Network
    nLight®
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    72000 h
  • Certificates
    CSAMade in USAADABAA
  • Environment
    Antimicrobial FinishDampHealthcare General
  • Mounting Type
    Wall Surface
  • Housing
  • Housing Depth
