H. E. Williams, Inc.

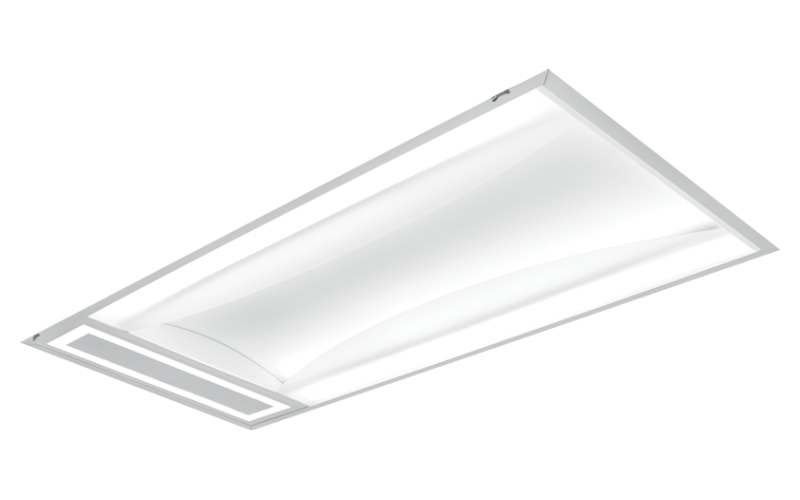

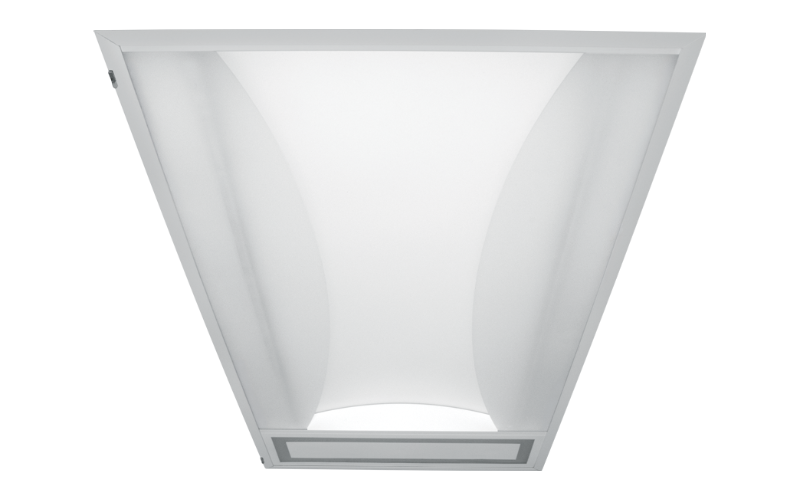

CMR. LED Contour Multi-Function Recessed.
Configure
Add to project
RESOURCES
DESCRIPTION
- Contoured architectural form integrates seamlessly with modern hospital interiors
- Ambient, exam, reading, and night functions tailor lighting to patient and staff needs
- Low UGR enhances visual comfort for reading and night lighting
- Optional low-voltage bedside and wall plate controls for convenient access to lighting functions
- Amber color temperature night light option creates gentle illumination while supporting natural sleep patterns
- Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
- Room-side accessible
- Smooth surface door frame and lens materials simplify cleaning and maintenance
- Double gasketing minimizes contaminants
- Low UGR meets LEED and WELL requirements
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)63.9 W116.5 W111.4 W137.1 W136.6 W
- Lumens(Approx)7073 Lm11793 Lm12989 Lm14472 Lm16277 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance72000 h
- CertificatesCSAMade in USABAA
- EnvironmentDampHealthcare General
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth3 9/16 ''
