H. E. Williams, Inc.

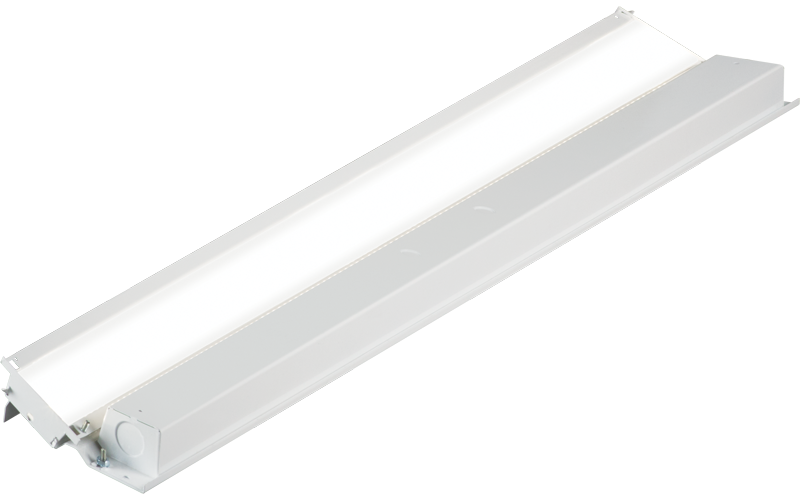

CX. LED Continuous Cove.
Configure
Add to project
RESOURCES
DESCRIPTION
- Provides soft, uniform, illumination for contractor and extruded coves.
- Field-adjustable to the inch ensures a perfect fit.
- Design spaces quickly with the Linear Product Builder.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 1/16"4 11/16"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtMore than 12 FtRun length (inch)H: 1 1/16"4 11/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)3.4 W/Ft4.9 W/Ft6.7 W/Ft8.3 W/Ft12.9 W/Ft
- Lumens(Approx)413 Lm/Ft614 Lm/Ft835 Lm/Ft1028 Lm/Ft1541 Lm/Ft
- OpticsIndirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10VDALI
- Controls/NetworkWireless Dimming
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSAMade in USABAA
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCX
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
