H. E. Williams, Inc.

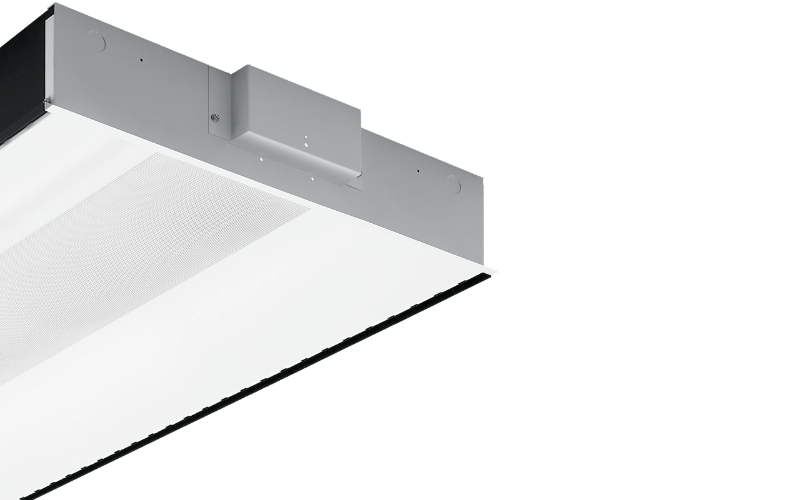

DI. LED Recessed Direct/Indirect – Air Return.
 Configure
 Add to project
H. E. Williams, Inc.. DI. LED Recessed Direct/Indirect – Air Return.
H. E. Williams, Inc.. DI. LED Recessed Direct/Indirect – Air Return.
H. E. Williams, Inc.. DI. LED Recessed Direct/Indirect – Air Return.
RESOURCES
DESCRIPTION
  • Air return capability reduces number of unsightly ceiling vents for a cleaner appearance
  • Choice of 6 diffusers
  • Provide soft, uniform illumination
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 Ft2 Ft
    L: 2 Ft4 Ft
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000K
  • CRI
    80 90
  • Watt(Approx)
    19.5 W25.8 W31.2 W37.9 W37.4 W45.7 W58.3 W71.1 W65.9 W74.8 W
  • Lumens(Approx)
    2729 Lm2472 Lm4739 Lm3286 Lm4862 Lm6016 Lm5060 Lm6317 Lm8857 Lm9869 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Step DimNon-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
  • Controls/Network
    Lutron®Wireless Dimming
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USABAA
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedT-Grid Ceiling
  • Housing
    Air Return
  • Housing Depth
    4 7/8 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
