H. E. Williams, Inc.

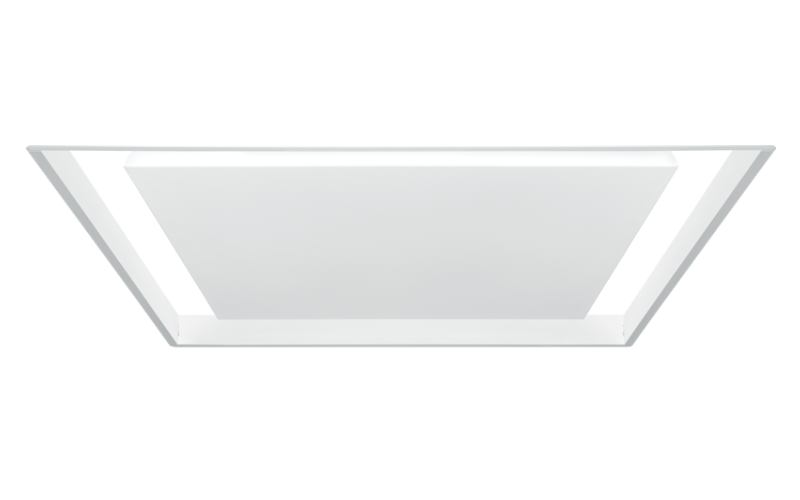

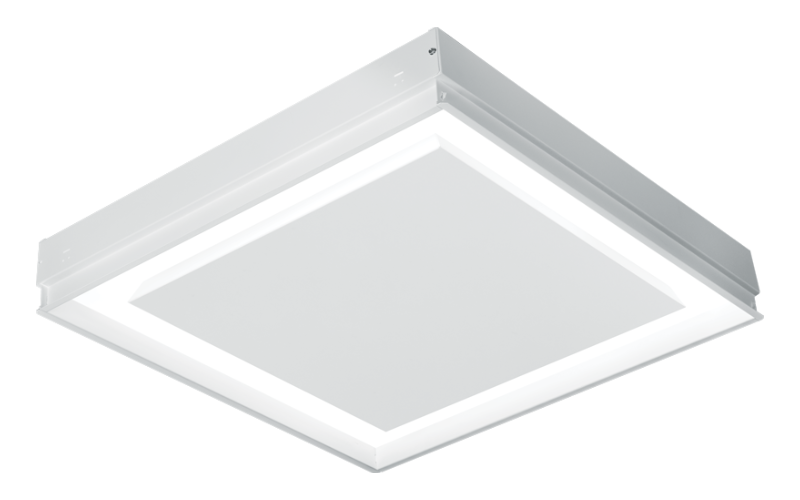

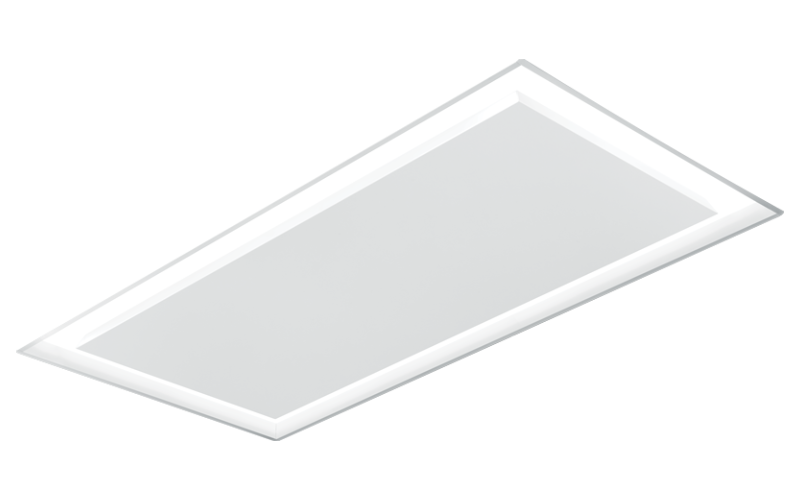

FRM. Recessed Architectural Frame LED.
Configure
Add to project
RESOURCES
DESCRIPTION
- Developed for workplaces, learning centers and healthcare campuses
- Square shape and regressed design complement the MX2 continuous series
- Diffuse lens provides enhanced visual comfort
- Fully room-side accessible with hinged center panel simplifies maintenance
- 2x2 and 2x4 sizes available
- Rated for direct contact with insulation
- Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Low UGR meets LEED and WELL requirements
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Build America, Buy America and Buy American Act compliant
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)25.4 W25.3 W53.9 W52.8 W85.6 W
- Lumens(Approx)2467 Lm2453 Lm5047 Lm5022 Lm7866 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Step DimNon-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkEthernetWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywall
- HousingICChicago Plenum
- Housing Depth4 1/2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFRM
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
