H. E. Williams, Inc.

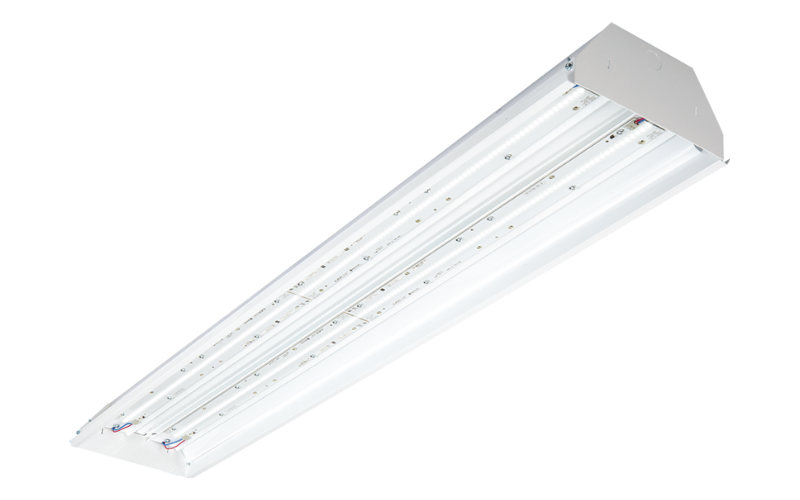

GLN. LED Narrow Industrial.
Configure
Add to project
DESCRIPTION

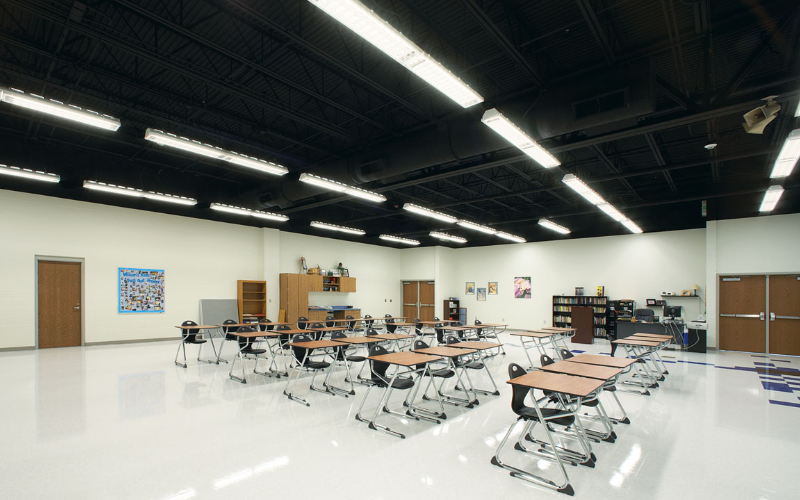

- Narrow fixture design is suitable for high-bay aisle applications
- Heavy-gauge aluminum housing for maximum heat dissipation
- Shallow fixture depth of less than 4" allows fixture placement near the ceiling for maximum space utilization
- Easy access to driver without the removal of LED modules
- Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
- Variety of mounting options
- High-performance up to 162 lm/W
- Optional wireguard provides added protection
- Optional steel door frame with clear or diffuse acrylic
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8 11/16"L: 48"96"H: 3 3/4"
- Light SourceLED
- CCT/Color3500K4000K5000K
- CRI80
- Watt(Approx)42.3 W65.3 W81.7 W101.2 W136.5 W202.4 W
- Lumens(Approx)6395 Lm10612 Lm12629 Lm15043 Lm21223 Lm30086 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Step DimNon-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance72000 h
- CertificatesCSAMade in USABAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeGLN
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
