H. E. Williams, Inc.

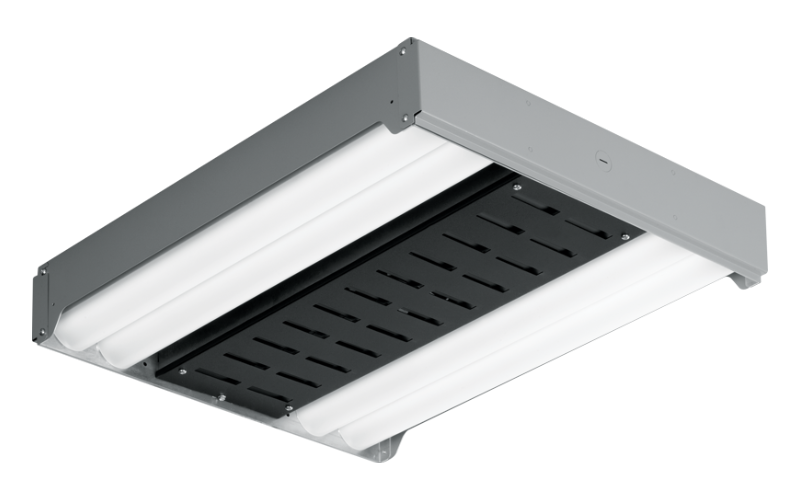

GP. LED Performance High Bay.
Configure
Add to project
DESCRIPTION
- Attractive and compact industrial styling with an innovative modular heatsink construction
- Open construction with aluminum heat sinks to maximize airflow and cooling
- Scalable footprint & variable outputs for high bay & low bay applications
- Clear and diffuse lens options
- Tailored performance with narrow, medium & wide distributions
- High-performance up to 140 lm/W
- Eliminate dark ceilings with the uniquely engineered uplight design
- Built tough with a 65°C maximum ambient temperature rating
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Build America, Buy America and Buy American Act compliant
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 14 3/8"19 3/16"27 1/4"L: 23 7/16"H: 4 3/16"
- Light SourceLED
- CCT/Color4000K5000K
- CRI80
- Watt(Approx)66 W107 W157 W187 W236 W278 W317 W375 W402 W438 W479 W520 W566 W
- Lumens(Approx)9281 Lm14770 Lm19818 Lm23310 Lm29015 Lm34147 Lm38934 Lm45793 Lm52871 Lm57596 Lm63000 Lm68200 Lm74099 Lm
- OpticsDirectIndirectDirect/IndirectFloodWide FloodGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance54000 h
- CertificatesCSAMade in USABAA
- EnvironmentDamp
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeGP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
