H. E. Williams, Inc.
HETL. LED High Efficiency Troffer – Lensed.
 Configure
 Add to project

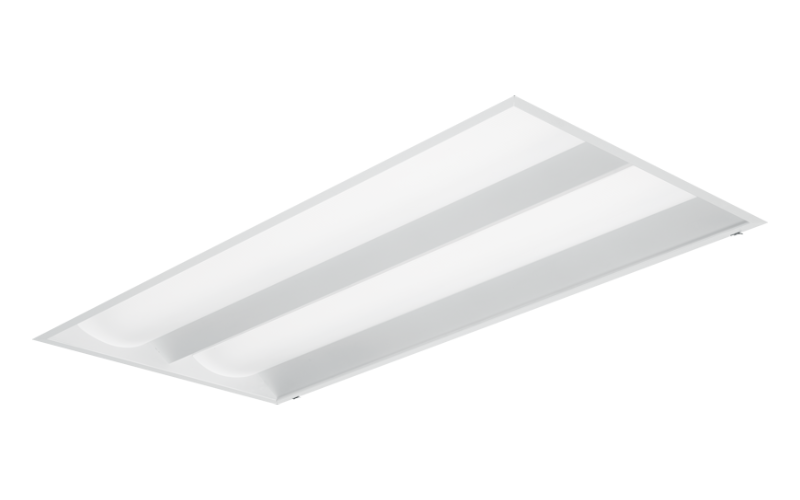

H. E. Williams, Inc.. HETL. HETL PoE High Efficiency Troffer – Lensed.
H. E. Williams, Inc.. HETL. HETL PoE High Efficiency Troffer – Lensed.
H. E. Williams, Inc.. HETL. HETL PoE High Efficiency Troffer – Lensed.
RESOURCES
DESCRIPTION
  • Transparent lensed door provides a barrier between the room and the ribbed acrylic diffuser to discourage vandals and minimize contaminants
  • Hinged optical assembly swings down to allow easy access from room side of fixture
  • Attractive and efficient architectural troffer delivers comfortable, uniform illumination
  • Double or triple gasketing options available
  • High-performance up to 126 lm/W
  • Frosted acrylic diffuser combined with highly reflective matte white paint provides high optical efficiencies and visual comfort
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
  • 1x4, 2x2, and 2x4 sizes available
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 Ft2 Ft
    L: 2 Ft4 Ft
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K5000K
  • CRI
    80 90
  • Watt(Approx)
    27.6 W25.5 W39.9 W41.1 W47.2 W74.4 W
  • Lumens(Approx)
    2863 Lm3081 Lm4812 Lm4681 Lm5765 Lm9412 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Non-Dim0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAMade in USABAA
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    New ConstructionChicago Plenum
  • Housing Depth
    4 3/8 ''4 7/16 ''
