H. E. Williams, Inc.

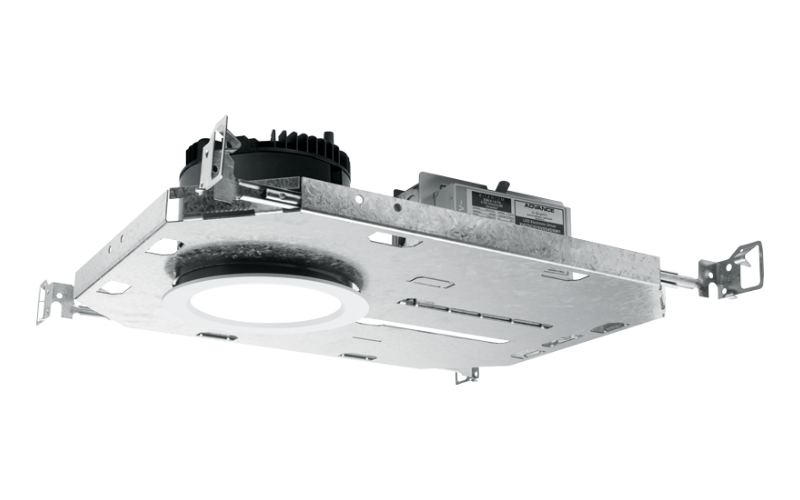

HM4DR-TL. LED 4.5″ Cleanroom Medical Downlight – Round.
Configure
Add to project
RESOURCES
DESCRIPTION
- Innovative TrimLock® reflector retention system ensures trim remains flush with ceiling plane
- Designed to meet the demanding requirements of controlled environments
- Smooth surface trim and lens materials simplify cleaning and maintenance
- NSF-approved gasketing meets all required testing criteria for ISO 5, Class 100 certification
- Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
- 4 inch aperture is unobtrusive in small scale spaces
- Beam angles ranging from 25º narrow to 50º wide for tailored performance
- Die-cast trim includes flush or regressed lens
- Easily adjust mounting arms below ceiling to adapt to a range of ceiling thicknesses
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 1/4"L: 4 1/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)14.5 W22.1 W26.9 W41.4 W55.4 W
- Lumens(Approx)992 Lm1317 Lm1345 Lm1472 Lm1953 Lm1995 Lm1967 Lm2610 Lm2667 Lm2813 Lm3732 Lm3813 Lm3890 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance55000 h
- CertificatesUL/CULChicago ApprovedNSFRoHSBAA
- EnvironmentClean RoomAntimicrobial FinishWetIP65
- Mounting TypeCeiling RecessedDrywall
- HousingNew ConstructionICChicago PlenumAir Tight
- Housing Depth5 3/4 ''6 1/2 ''
