H. E. Williams, Inc.

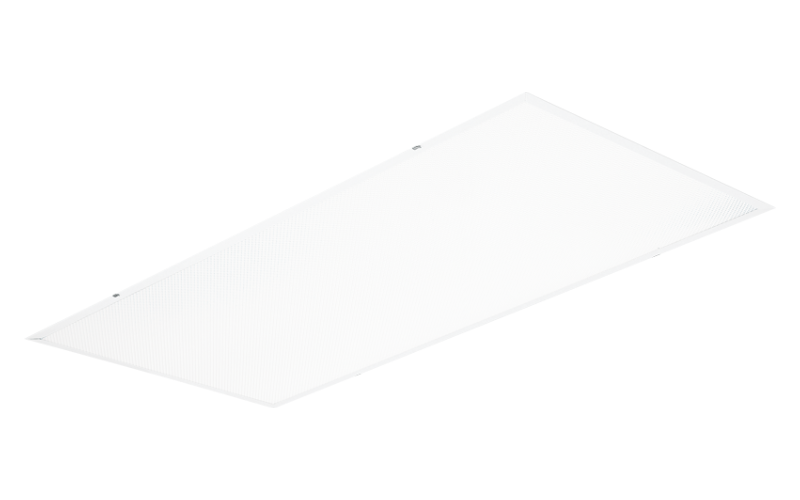

LPT. LED/Tunable White Low-Profile Troffer.
Configure
Add to project
RESOURCES
DESCRIPTION
- 3-7/16" deep housing installs easily within limited plenum space
- Gasketed door frame features offset mitered corners to eliminate light leaks
- Cam latches close securely and allow hassle-free maintenance
- Reversible door hinges and latches allow access on either side
- Deep reinforcement ribs provide added strength
- Integral T-bar clips quickly secure fixture to structure
- High-performance up to 137 lm/W
- 2x2 and 2x4 sizes available
- Frosted or clear acrylic lens options available
- Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
- IC-rated for direct contact with insulation
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)21.4 W33.7 W31.4 W42.4 W61 W67.4 W
- Lumens(Approx)2662 Lm4425 Lm4306 Lm5376 Lm7556 Lm9031 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAMade in USABAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth3 7/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLPT-TW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
