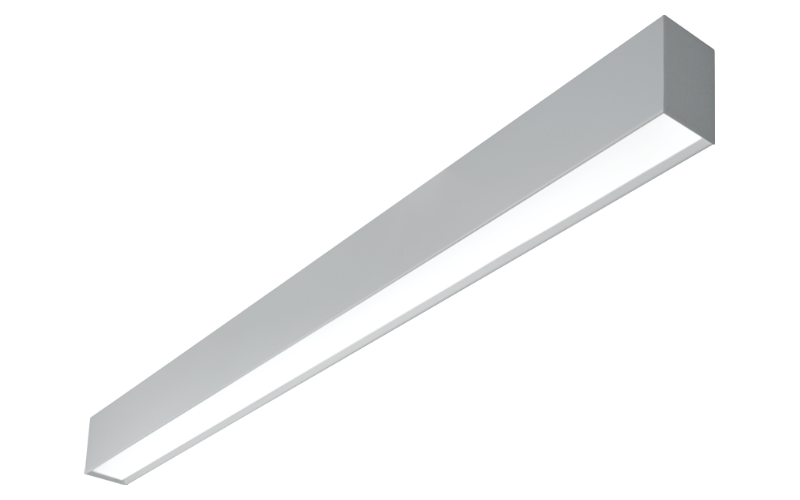

LRX2S. Surface 2'' Wide Linear.
Configure
Add to project
RESOURCES
DESCRIPTION
- Sleek design incorporates clean lines, slim styling, and diffused matte acrylic lens
- Attractive source of direct lighting for use in offices, hallways, conference rooms or common areas
- Lift and shift lens allows easy access to internal components
- For use as stand-alone fixture or in continuous rows
- Installer-friendly row aligners ensure seamless joining between fixtures
- High-performance, seamless illumination
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- 2′, 4′, 6′ and 8′ lengths available
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 13/16″L: 24"48"96"H: 4 1/16″
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)4 W7.7 W12.2 W16.6 W
- Lumens(Approx)423 Lm807 Lm1219 Lm1606 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesCSAMade in USABAA
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
