H. E. Williams, Inc.

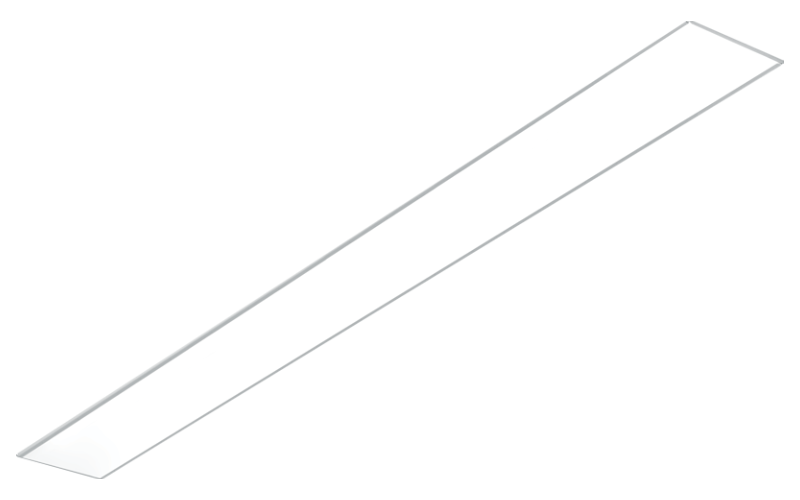

LRX4. LED 4″ Wide Linear Recessed.
Configure
Add to project
RESOURCES
DESCRIPTION
- Available on QuickShip
- Sleek design incorporates clean lines, slim styling, and diffused matte acrylic lens
- Attractive source of direct lighting for use in offices, hallways, conference rooms or common areas
- Lift and shift lens allows easy access to internal components
- For use as stand-alone fixture or in continuous rows
- Grid or hardpan ceilings
- High-performance, seamless illumination
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- DLC Compliant
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 11/16"L: 47 13/16"
- Light SourceLED
- CCT/Color3500K
- CRI80
- Watt(Approx)6.5 W/Ft
- Lumens(Approx)800 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAMade in USABAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingIC
- Housing Depth4 7/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLRX4_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
