H. E. Williams, Inc.

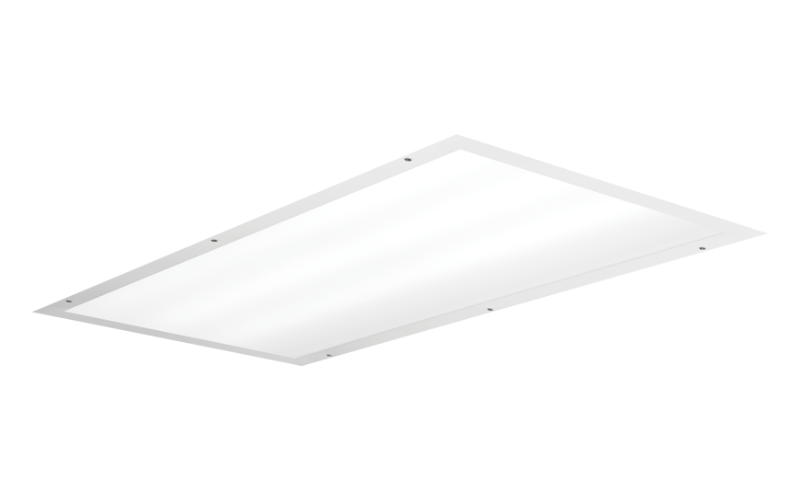

MCT. LED Medical Clean Room Troffer.
 Configure
 Add to project
H. E. Williams, Inc.. MCT. MCT Medical Clean Room Troffer LED.
H. E. Williams, Inc.. MCT. MCT Medical Clean Room Troffer LED.
RESOURCES
DESCRIPTION
  • Designed to meet the demanding requirements of controlled environments
  • NSF approved closed cell foam gasketing in three locations meets all required testing criteria for ISO 5, Class 100 certification
  • Seam-welded fixture housing and doorframe are designed for infection control
  • Smooth surface doorframe and lens materials simplify cleaning and maintenance
  • Optional MIL-STD-461G complies with radiated and conducted emission regulations
  • Optional plenum access panel allows maintenance personnel to service both the plenum space and fixture components without disturbing the ceiling structure or compromising cleanroom integrity
  • Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
  • High-performance up to 132 lm/W
  • Optional tamper-resistant screws secure door frame to provide protection in high-risk areas
  • IC-rated for direct contact with insulation
  • 1x4, 2x2, and 2x4 sizes available
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Build America, Buy America and Buy American Act compliant
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 Ft2 Ft
    L: 2 Ft4 Ft
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K5000K
  • CRI
    80 90
  • Watt(Approx)
    28.6 W34 W46.7 W67.4 W52.9 W80.8 W91.9 W169.2 W
  • Lumens(Approx)
    4021 Lm3452 Lm6522 Lm6078 Lm7962 Lm9534 Lm12124 Lm20805 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Non-Dim0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAMade in USANSFBAA
  • Environment
    Clean RoomAntimicrobial FinishIP65Healthcare General
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    New ConstructionIC
  • Housing Depth
    5 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
