H. E. Williams, Inc.

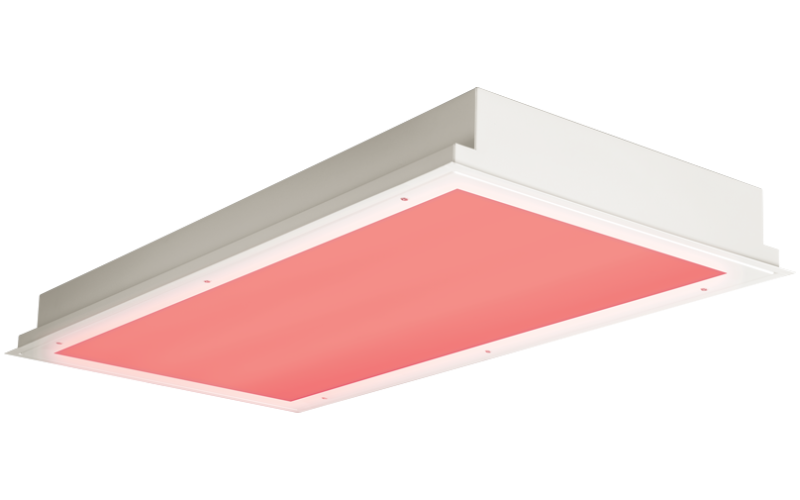

MCT. LED Red Medical Clean Room Troffer.
Configure
Add to project
RESOURCES
DESCRIPTION
- 625nm Red LEDs provide safe lighting for spectrally-sensitive applications
- Red and white LED circuits are optimized for vivarium, biosafety, and pharmaceutical applications
- Designed to meet the demanding requirements of controlled environments
- NSF approved closed cell foam gasketing in three locations meets all required testing criteria for ISO 5, Class 100 certification
- Seam-welded fixture housing and doorframe are designed for infection control
- Smooth surface doorframe and lens materials simplify cleaning and maintenance
- Optional MIL-STD-461G complies with radiated and conducted emission regulations
- Optional plenum access panel allows maintenance personnel to service both the plenum space and fixture components without disturbing the ceiling structure or
- compromising cleanroom integrity
- Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
- High-performance up to 132 lm/W
- Optional tamper-resistant screws secure door frame to provide protection in high-risk areas
- IC-rated for direct contact with insulation
- 1x4, 2x2, and 2x4 sizes available
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Build America, Buy America and Buy American Act compliant
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000KRed
- CRI80 90
- Watt(Approx)14 W25.6 W30.3 W44.6 W69.6 W63.6 W51.4 W75.3 W87.8 W132 W121.4 W
- Lumens(Approx)603 Lm1181 Lm1124 Lm1816 Lm2421 Lm4727 Lm4888 Lm3812 Lm7464 Lm14871 Lm10197 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesCSAMade in USANSFBAA
- EnvironmentClean RoomAntimicrobial FinishIP65Spectrally-Sensitive ApplicationsHealthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionIC
- Housing Depth5 ''
