H. E. Williams, Inc.

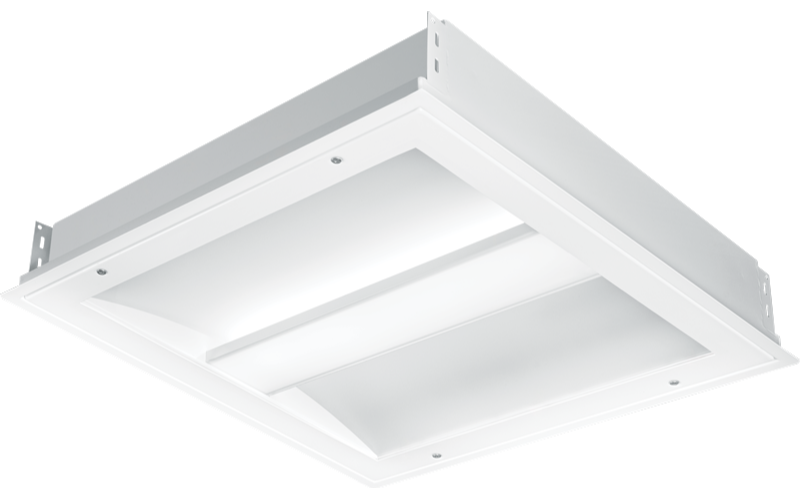

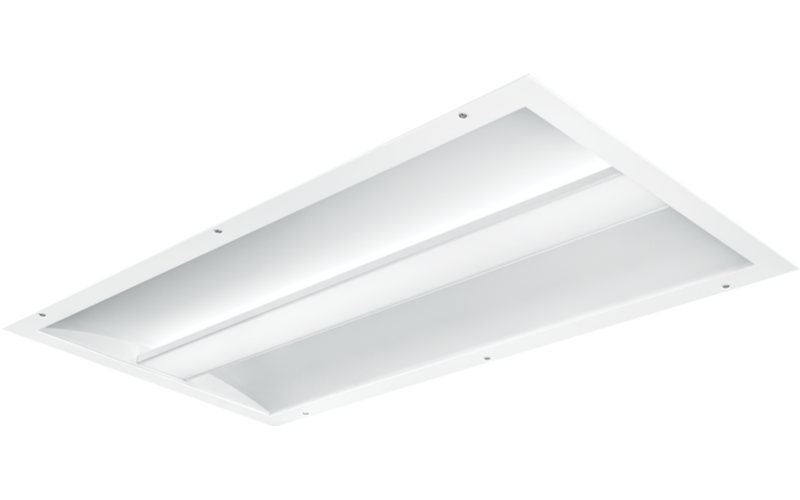

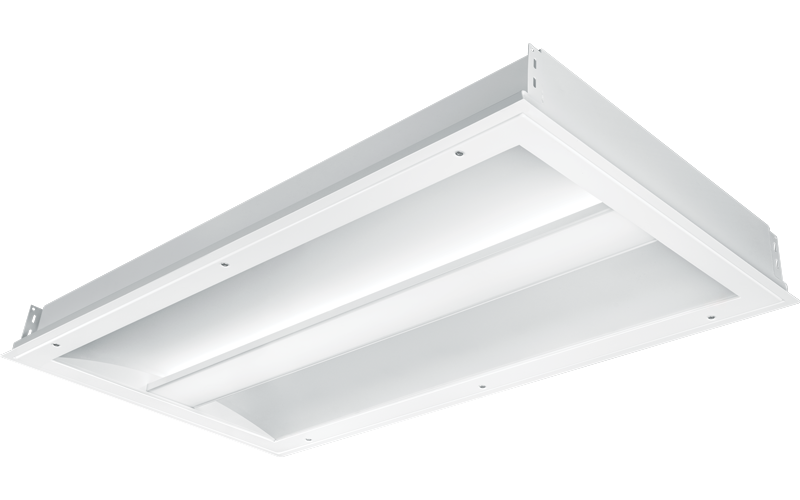

MCTA. LED Architectural Clean Room Troffer.
 Configure
 Add to project
H. E. Williams, Inc.. MCTA. LED Architectural Clean Room Troffer.
H. E. Williams, Inc.. MCTA. LED Architectural Clean Room Troffer.
H. E. Williams, Inc.. MCTA. LED Architectural Clean Room Troffer.
H. E. Williams, Inc.. MCTA. LED Architectural Clean Room Troffer.
RESOURCES
DESCRIPTION
  • Architectural design with a distinct floating center detail elevates the style in labs, cleanrooms and other controlled environments
  • Backlit curved lens provides uniform illumination for visual comfort
  • Seam-welded fixture housing and door frame are designed for infection control
  • Smooth surface door frame and lens materials simplify cleaning and maintenance
  • NSF approved closed cell foam gasketing in three locations meets all required testing criteria for ISO 5, Class 100 certification
  • Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
  • Rated for direct contact with insulation
  • 2x2 and 2x4 sizes available
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Buy American Act compliant
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 Ft
    L: 2 Ft4 Ft
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000K
  • CRI
    80 90
  • Watt(Approx)
    27.3 W46.3 W58.5 W94.2 W
  • Lumens(Approx)
    3462 Lm6779 Lm5964 Lm11818 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Non-Dim0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAMade in USAChicago ApprovedNSF
  • Environment
    Clean RoomAntimicrobial FinishIP65
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    IC
  • Housing Depth
    5 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
