H. E. Williams, Inc.

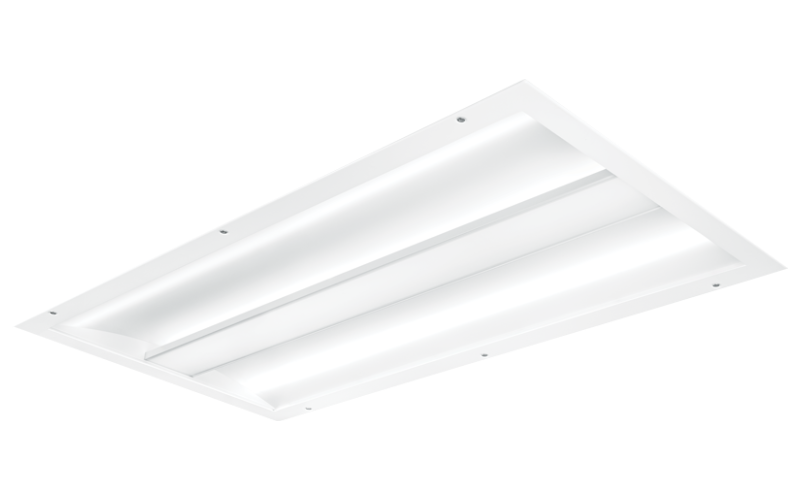

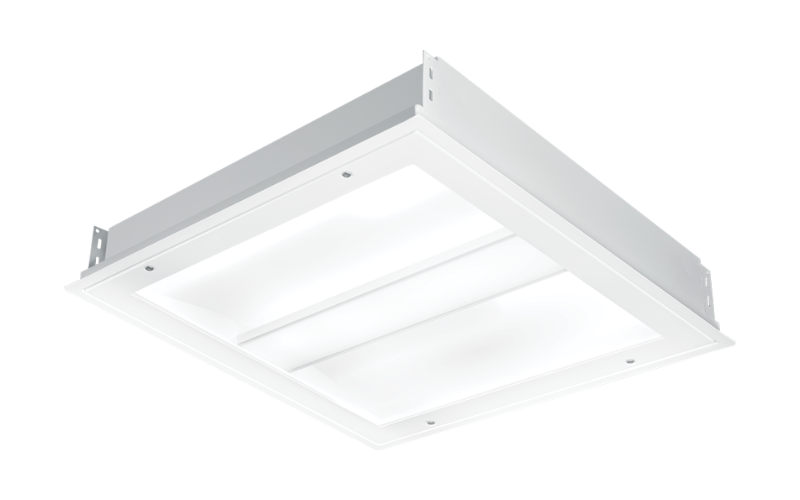

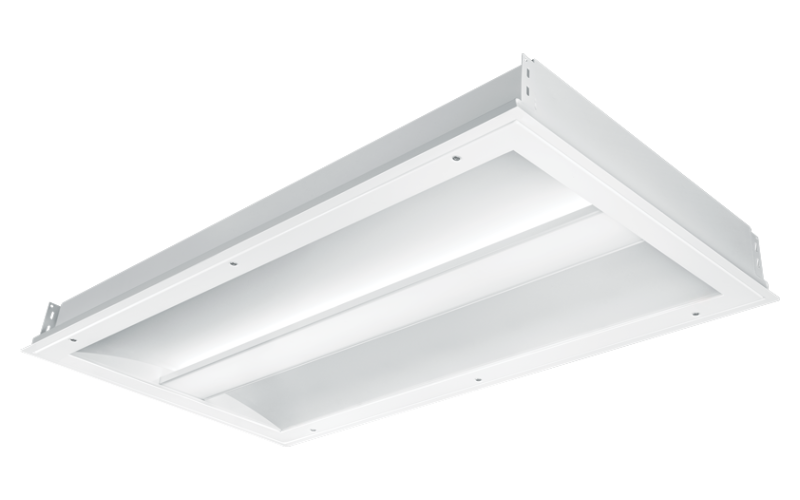

MCTM. Multi-Function Medical Troffer LED.
 Configure
 Add to project
H. E. Williams, Inc.. MCTM. Multi-Function Medical Troffer LED.
H. E. Williams, Inc.. MCTM. Multi-Function Medical Troffer LED.
H. E. Williams, Inc.. MCTM. Multi-Function Medical Troffer LED.
H. E. Williams, Inc.. MCTM. Multi-Function Medical Troffer LED.
RESOURCES
DESCRIPTION
  • Architectural design with a distinct floating center detail elevates the style in patient rooms
  • Smooth surface door frame and lens materials simplify cleaning and maintenance
  • NSF approved closed cell foam gasketing in three locations meets all required testing criteria for ISO 5, Class 100 certification
  • Tailor ambient, exam, reading and night light output with eight configurations
  • Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
  • Optional low-voltage controller allows for bedside lighting control
  • Rated for direct contact with insulation
  • 2x2 and 2x4 sizes available
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Amber color temperature night light option provides gentle illumination while supporting natural sleep patterns
  • Buy American Act compliant
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 Ft
    L: 2 Ft4 Ft
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000K
  • CRI
    80 90
  • Watt(Approx)
    61.6 W74.3 W64.5 W77.3 W101.1 W120.9 W104 W123.8 W
  • Lumens(Approx)
    7319 Lm8743 Lm7360 Lm8784 Lm13210 Lm13251 Lm15326 Lm15367 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Non-Dim0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULMade in USAChicago ApprovedNSFBAA
  • Environment
    IP65Healthcare General
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    IC
  • Housing Depth
    5 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
