H. E. Williams, Inc.

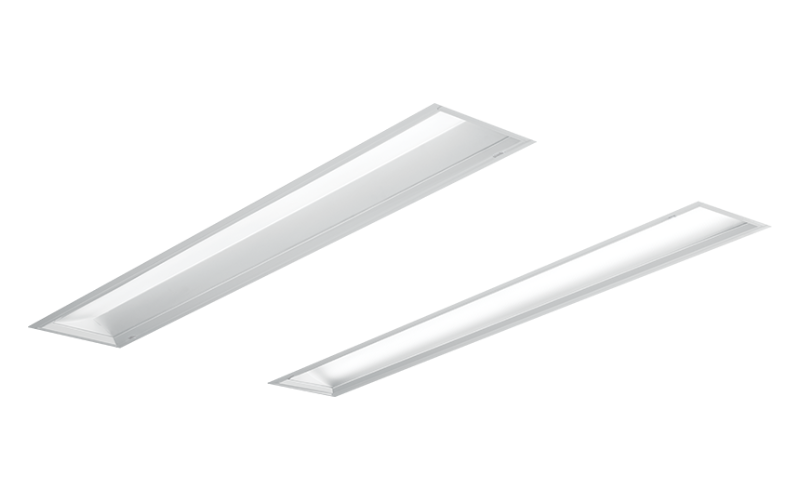

MD4. LED Architectural Multi-Function Medical.
Configure
Add to project
RESOURCES
DESCRIPTION
- Specify as a single fixture or in pairs to customize ambient, exam, and reading light output
- Illuminate exam surfaces asymmetrically when installed in pairs and meet IESNA guidelines
- Smooth, calming ambient lighting enhances patient comfort
- Fixtures can be installed to allow maintenance access without working directly over patient beds
- Optional low-voltage controller allows for bedside lighting control
- Double-gasketed sani-shield protects fixture from dust, bugs and other contaminants while simplifying maintenance and cleaning
- Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
- Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
- High-performance up to 112 lm/W
- Low-voltage controller wall plate accessories provide easy access for healthcare personnel
- Optional tamper-resistant screws secure door frame
- Optional triple gasket protects against contaminant ingress
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Build America, Buy America and Buy American Act compliant
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7 11/16"L: 4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)61 W71.1 W71.8 W71.4 W74.5 W81.9 W80.6 W83.7 W81.5 W90.7 W84.6 W93.8 W121.9 W142.1 W143.7 W142.7 W148.9 W163.9 W161.1 W167.3 W162.9 W181.3 W169.1 W187.5 W
- Lumens(Approx)5594 Lm6532 Lm8061 Lm8999 Lm7614 Lm8917 Lm7948 Lm9251 Lm8552 Lm9855 Lm8886 Lm10189 Lm11188 Lm13063 Lm16123 Lm17998 Lm15229 Lm17834 Lm15897 Lm18502 Lm17104 Lm19709 Lm17772 Lm20377 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesCSAMade in USABAA
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMD4
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
