H. E. Williams, Inc.

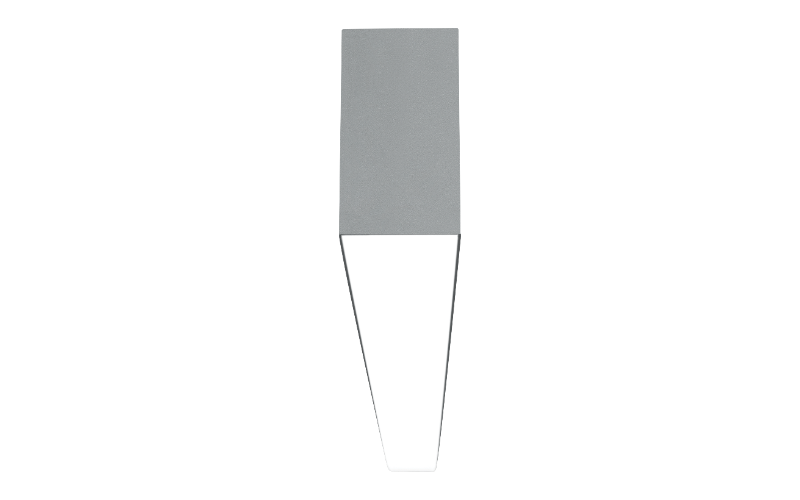

MX2W. Tunable White 2″ Continuous – Wall.
Configure
Add to project
RESOURCES
DESCRIPTION
- Create elegant spaces with a seamless, continuous row of illumination
- Flat, glowing edge, drop and regressed lenses give designers a variety of looks
- Specify in one inch increments to create a perfect fit
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/4"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtMore than 12 FtRun length (inch)H: 4"
- Light SourceLED
- CCT/ColorTunable White
- CRI80
- Watt(Approx)6.6 W/Ft
- Lumens(Approx)785 Lm/Ft865 Lm/Ft
- OpticsDirectIndirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALIDMX
- Controls/NetworkLutron®Wireless Dimming
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLMade in USAADABAA
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMX2W-TW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
