H. E. Williams, Inc.

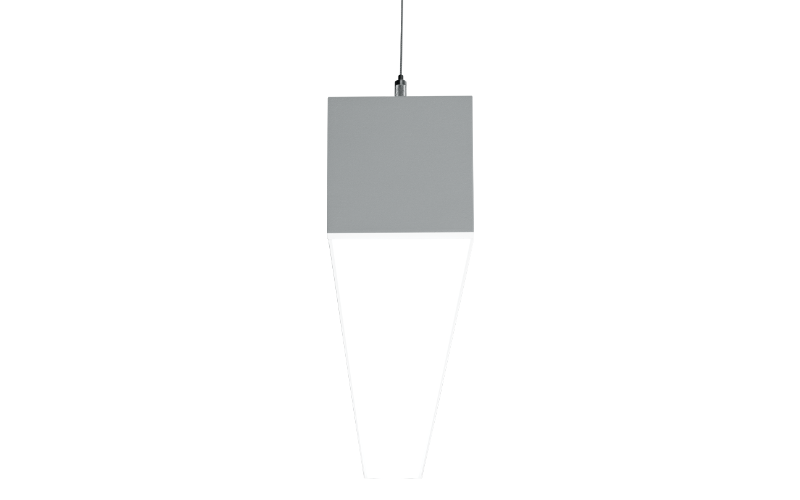

MX4D. LED 4″ Continuous Down – Suspended.
 Configure
 Add to project
H. E. Williams, Inc.. MX4. MX4 LED 4” Continuous – Suspended.
H. E. Williams, Inc.. MX4. MX4 LED 4” Continuous – Suspended.
H. E. Williams, Inc.. MX4. MX4 LED 4” Continuous – Suspended.
RESOURCES
DESCRIPTION
  • Create elegant spaces with a seamless, continuous row of illumination
  • Moveable mounting hardware easily slides along the length of the fixture providing variable mounting points
  • High-performance up to 128 lm/W for greater energy savings
  • Linear extrusion contains snap-in light rails for ease of installation and maintenance
  • Versatile MX4 system includes recessed, surface, suspended and in-wall mounting
  • Fully illuminated corner configurations available
  • Diffuse acrylic lens provides uniform illumination for visual comfort
  • Design spaces quickly with the Linear Product Builder
  • Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4 1/8"
    L: Run length (inch)
    H: 4 1/8"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    6.6 W/Ft9.9 W/Ft12.5 W/Ft
  • Lumens(Approx)
    845 Lm/Ft1259 Lm/Ft1835 Lm/Ft
  • Optics
    DirectGeneral DiffusedAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Non-Dim0-10V
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    60000 h
  • Certificates
    CSAMade in USABAA
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
