H. E. Williams, Inc.

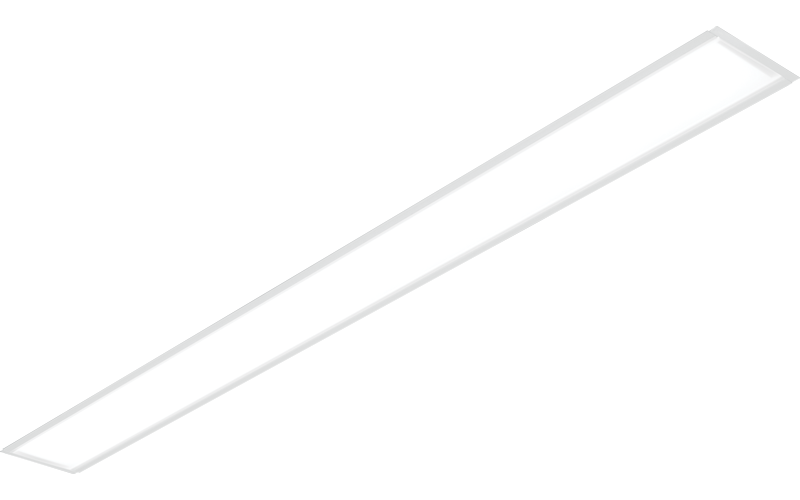

MX4R. LED/Tunable White 4″ Continuous – Recessed.
Configure
Add to project



RESOURCES
DESCRIPTION
- Create elegant spaces with a seamless, continuous row of illumination
- Widespread optic allows for increased luminaire spacing while enhancing ceiling uniformity
- Specify in one inch increments to create a perfect fit
- Asymmetric optic directs light for targeted illumination
- High-performance up to 120 lm/W
- Flat and regressed lenses give designers a variety of looks
- Linear extrusion contains snap-in light rails for ease of installation and maintenance
- Versatile MX4 system includes recessed, surface, suspended and in-wall mounting
- Fully illuminated corner configurations available
- Diffuse acrylic lens provides uniform illumination for visual comfort
- Design spaces quickly with the Linear Product Builder
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtMore than 12 FtRun length (inch)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)7.3 W/Ft10.9 W/Ft13.7 W/Ft
- Lumens(Approx)874 Lm/Ft1289 Lm/Ft1601 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSAMade in USABAA
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth3 3/4 ''4 5/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMX4R-TW
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
