H. E. Williams, Inc.

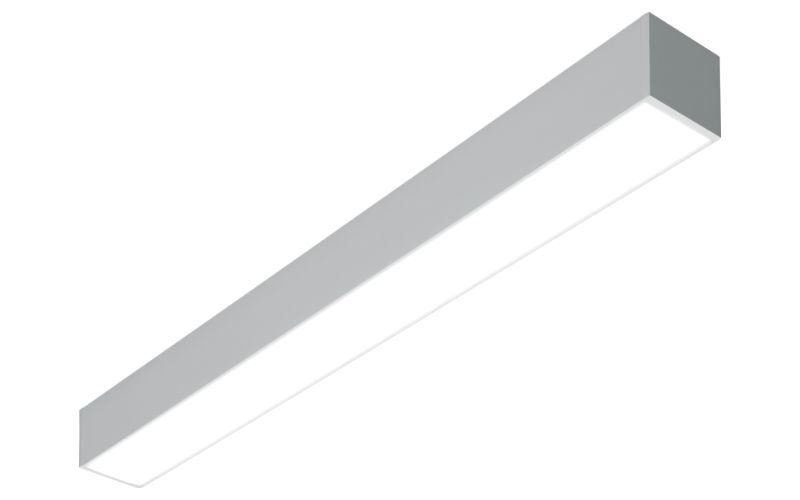

MX4WUDC. LED 4'' Compact Continuous Up/Down – Wall.
Configure
Add to project
RESOURCES
DESCRIPTION
- Create elegant spaces with a seamless, continuous row of illumination
- Fixture attaches to wall bracket for simple installation
- Asymmetric optic directs light for targeted illumination
- High-performance up to 133 lm/W for greater energy savings
- Specify in one inch increments to create a perfect fit
- Linear extrusion contains snap-in light rails for ease of installation and maintenance
- Attractive source of direct and indirect lighting
- Versatile MX4 system includes recessed, surface, suspended and in-wall mounting
- Diffuse acrylic lens provides uniform illumination for visual comfort
- Design spaces quickly with the Linear Product Builder
- Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 3/16"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtRun length (Ft)H: 4 3/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)13.5 W15.6 W17.8 W15.9 W18.5 W
- Lumens(Approx)822 Lm845 Lm1218 Lm1259 Lm1522 Lm1535 Lm
- OpticsDirectIndirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSAMade in USABAA
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMX4WUDC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
