H. E. Williams, Inc.

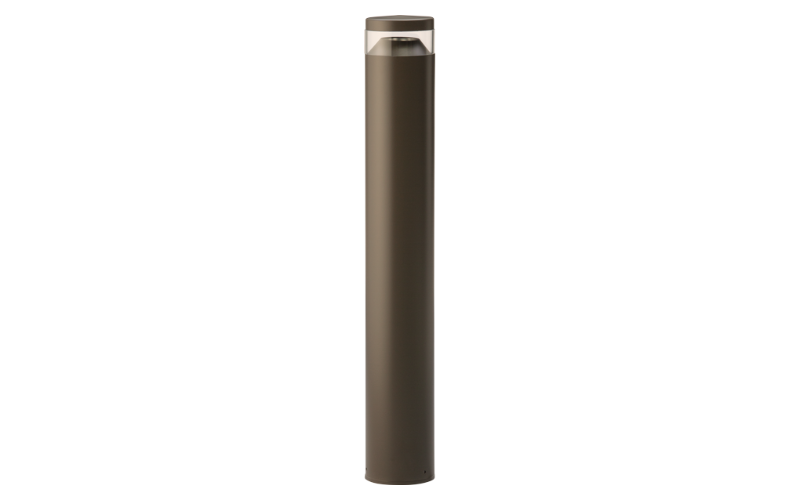

OSA6R. LED 6" Round Aluminum Bollard.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
INSTALLATION
DESCRIPTION
- Designed with clean lines suitable for a variety of low level lighting applications.
- Available with a flat or dome top and seven finish options.
- Round aluminum bollard features a highly reflective bowl reflector with color-matched trim for effective light distribution and pleasing appearance day or night.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"L: 6"H: 38"42 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)11 W18.1 W27.1 W
- Lumens(Approx)900 Lm1400 Lm1900 Lm
- OpticsDirectType V
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V480V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentWet
- Mounting TypeBollard
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeOSA6R
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
