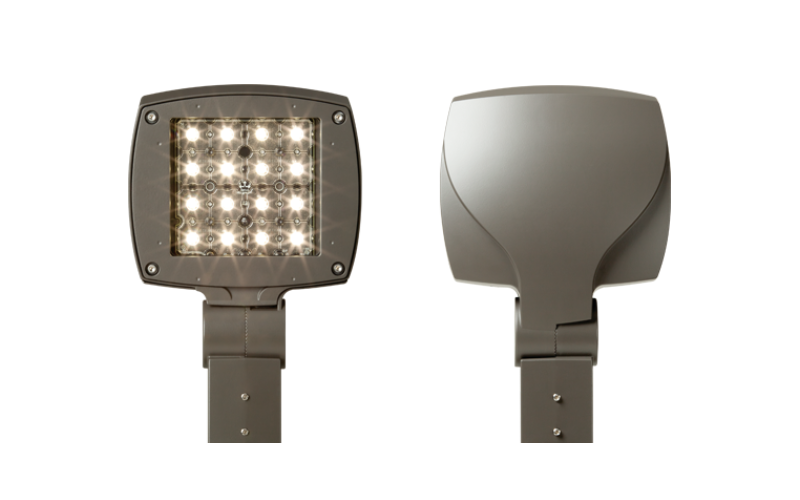

VF1. LED Voltaire Architectural Flood Light – Small.
Configure
Add to project
RESOURCES
DESCRIPTION
- Contoured styling blends seamlessly with landscaping.
- Precise light control with six standard NEMA distributions.
- Versatile suite of architectural mounting arms.
- Blends seamlessly with a variety of architectural styles.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8 3/8"L: 9 1/8"H: 3 1/16"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI70
- Watt(Approx)18 W36 W
- Lumens(Approx)2744 Lm4653 Lm
- OpticsDirectNarrowMediumFloodWide Flood

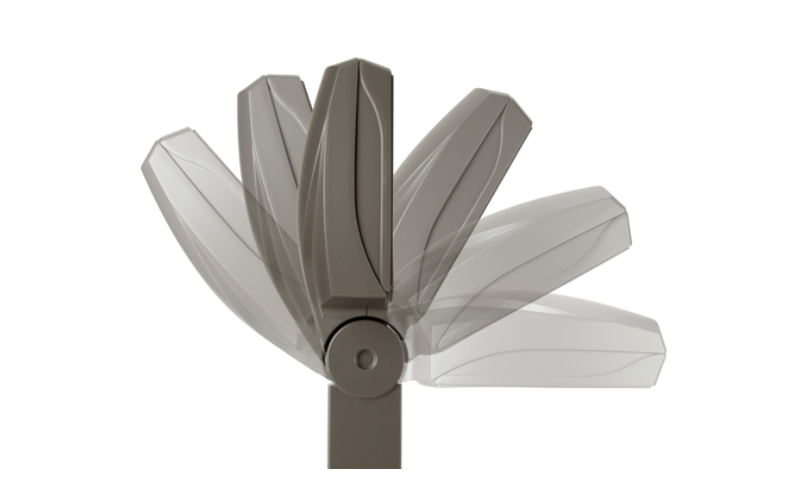

- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V480V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAT24*RoHSBAA
- EnvironmentIP66
- Mounting TypePole/Mast ArmWall Arm/Cantilever
- Housing
- Housing Depth
