H. E. Williams, Inc.

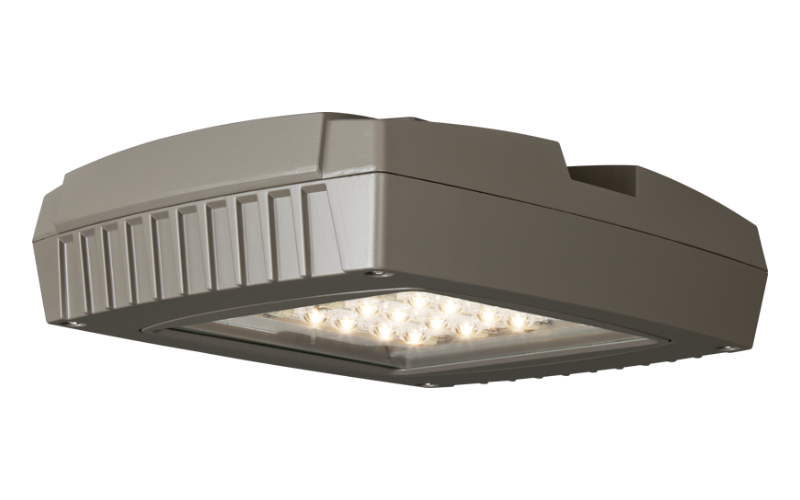

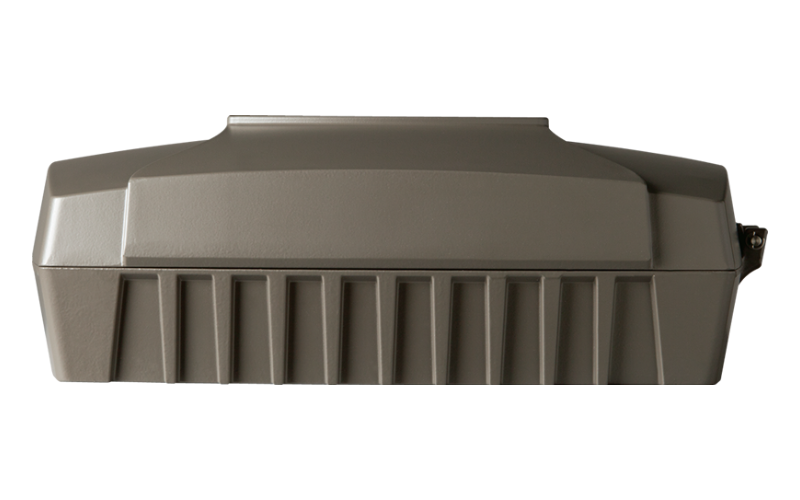

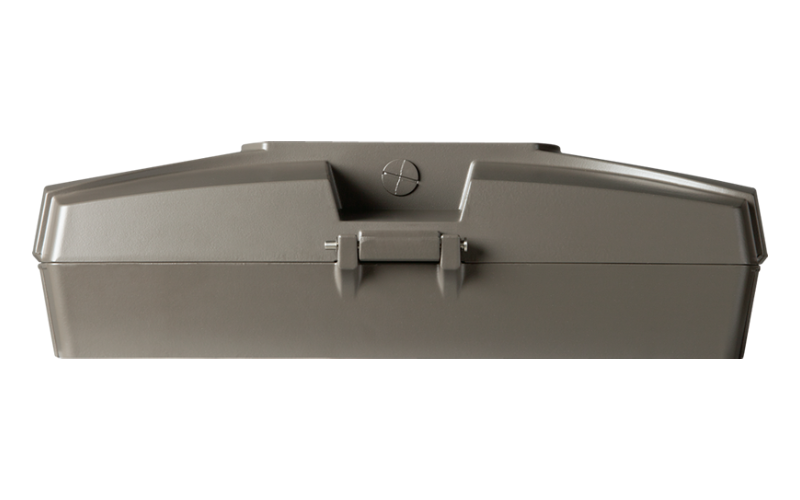

VG1. LED Voltaire Architectural Surface/Garage Light.
Configure
Add to project
RESOURCES
DESCRIPTION
- Rugged and durable housing with IP66 rating
- Provides security light levels and reduced glare
- Quick and easy installation with the hinged two-piece enclosure
- Effectively illuminates any garage, canopy and exterior surface or pendant mount application
- Achieve multi-level control with optional motion and daylight sensors
- Optional wireguard provides added protection
- Precise light control with three distributions
- Seven standard finish options and a wide selection of custom colors complement the architectural elements of any outdoor environment
- IDA Dark-Sky approved to minimize glare, reduce light trespass and help protect night sky
- DLC Compliant
- Build America, Buy America and Buy American Act compliant
- Wireless in-fixture control solutions available
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 13 1/2"L: 16"H: 4 5/8"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI70 80
- Watt(Approx)36 W69 W102 W
- Lumens(Approx)4110 Lm8219 Lm12329 Lm
- OpticsDirectFloodType IIIType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSADark SkyMade in USADLC*RoHSBAA
- EnvironmentIP66
- Mounting TypePendantSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVG1
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
