H. E. Williams, Inc.
W6CR. LED 6.5″ Wet Location Cylinder – Round.
 Configure
 Add to project

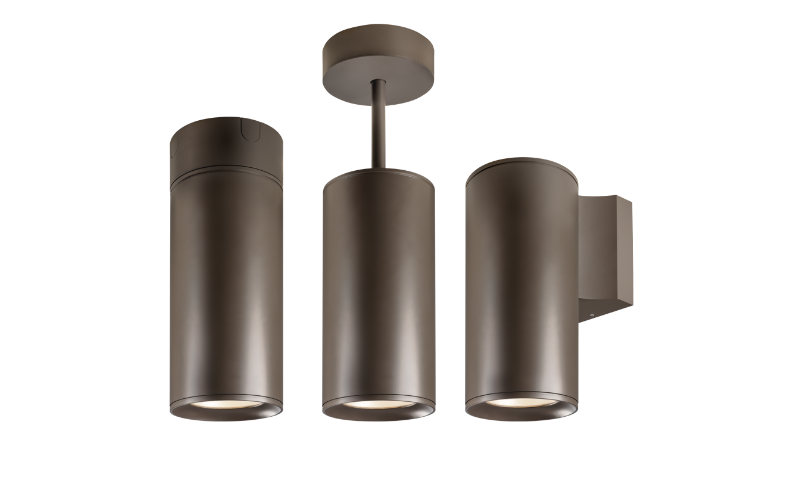

H. E. Williams, Inc.. W6CR. LED 6.5″ Wet Location Cylinder – Round.
H. E. Williams, Inc.. W6CR. LED 6.5″ Wet Location Cylinder – Round.
RESOURCES
DESCRIPTION
  • Sleek architectural form delivers refined, high-performance outdoor illumination
  • Bold profile creates a strong visual statement across large exterior surfaces
  • Versatile pendant, wall, and canopy-mount maximize application flexibility
  • Durable aluminum housing and die-cast trim engineered for year-round exposure
  • Sealed IP-rated design guards internal components from water, dust, and debris
  • Pairs with Williams indoor cylinders for seamless exterior-to-interior continuity
  • Simple lift-and-twist surface and pendant mount secures trim skirt to junction box
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Buy American Act compliant
  • Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 6 1/2"
    L: 6 1/2"
    H: 15 1/4"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000K
  • CRI
    80 90
  • Watt(Approx)
    10.1 W20.1 W27 W36.7 W45 W53.6 W63.7 W
  • Lumens(Approx)
    1081 Lm2169 Lm3077 Lm4045 Lm5173 Lm6241 Lm7021 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralRemoteUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    105000 h
  • Certificates
    CSAMade in USABAA
  • Environment
    IP66
  • Mounting Type
    PendantCeiling SurfaceWall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
