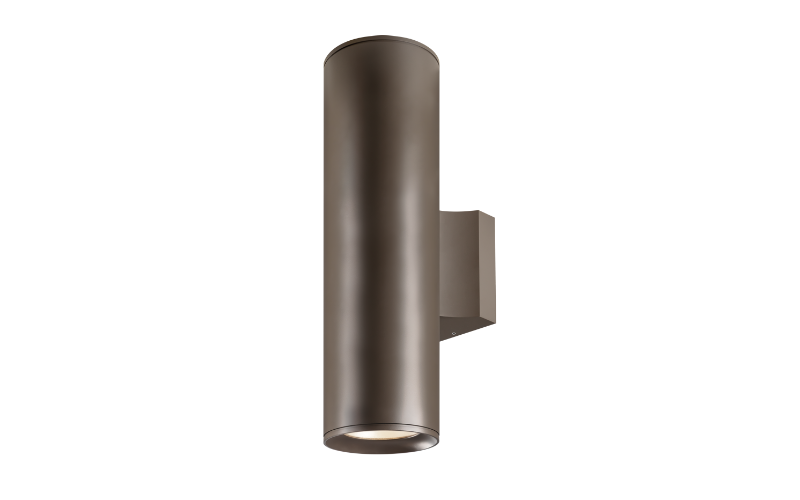

W6CRDI. LED 6.5″ Wet Location Direct/Indirect Cylinder – Round.
Configure
Add to project
RESOURCES
DESCRIPTION
- Direct and indirect light combine to brighten canopies and softly accent vertical surfaces
- Sleek architectural form delivers refined, high-performance outdoor illumination
- Bold profile creates a strong visual statement across large exterior surfaces
- Durable aluminum housing and die-cast trim engineered for year-round exposure
- Sealed IP-rated design guards internal components from water, dust, and debris
- Pairs with Williams indoor cylinders for seamless exterior-to-interior continuity
- All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
- Buy American Act compliant
- Made Right Here® in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6 1/2"L: 6 1/2"H: 22 1/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)10.1 W20.1 W27 W36.7 W45 W
- Lumens(Approx)1081 Lm2169 Lm3077 Lm4045 Lm5173 Lm
- OpticsDirectIndirectDirect/IndirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance105000 h
- CertificatesCSAMade in USABAA
- EnvironmentIP66
- Mounting TypeWall Surface
- Housing
- Housing Depth
