HALO Commercial (Cooper Lighting Solutions)

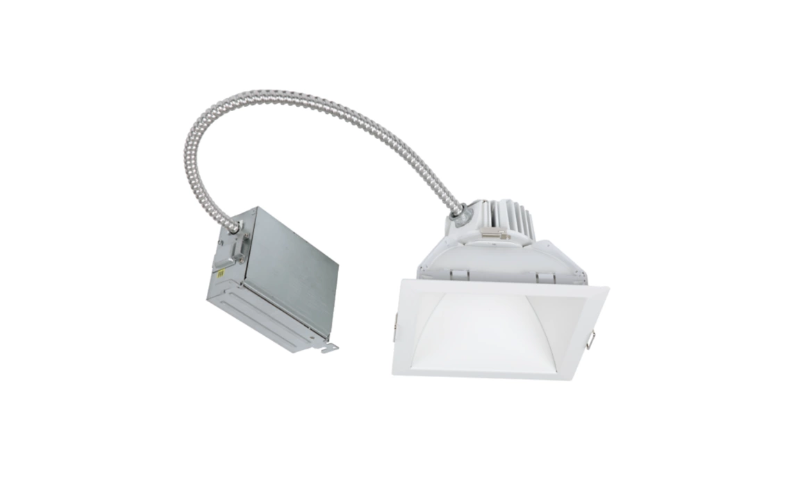

HCD6. Professional Direct Mount Commercial Downlighting System 6'' Square Downlight/Wall Wash.
Configure
Add to project
RESOURCES
DESCRIPTION
The HCD Pro Direct Mount System is the ultimate commercial downlighting solution for professional engineers and contractors. A completely modular system means fewer parts and pieces, making it easier than ever to specify and install exceptional downlighting in any application. Say goodbye to worrying about compatibility and upgrade to convenient flexibility with HCD Pro.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.5"L: 7.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KField Select CCT
- CRI90
- Watt(Approx)5 W7.5 W10 W15 W20 W25 W28.5 W33.5 W38.5 W38 W44 W48 Wswitchable
- Lumens(Approx)636 Lm942 Lm1223 Lm1860 Lm2432 Lm2960 Lm3627 Lm4173 Lm4692 Lm4617 Lm5106 Lm5569 Lmswitchable
- OpticsDirectWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 1%0-10V
- Controls/NetworkWireless DimmingWaveLinx
- Power/VoltageRemoteUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULT24*Energy Star*RoHSBAA
- EnvironmentIP65
- Mounting TypeCeiling RecessedRetrofitDrywallT-Grid Ceiling
- HousingNew ConstructionICChicago PlenumRemodel
- Housing Depth5.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
