HALO Commercial (Cooper Lighting Solutions)

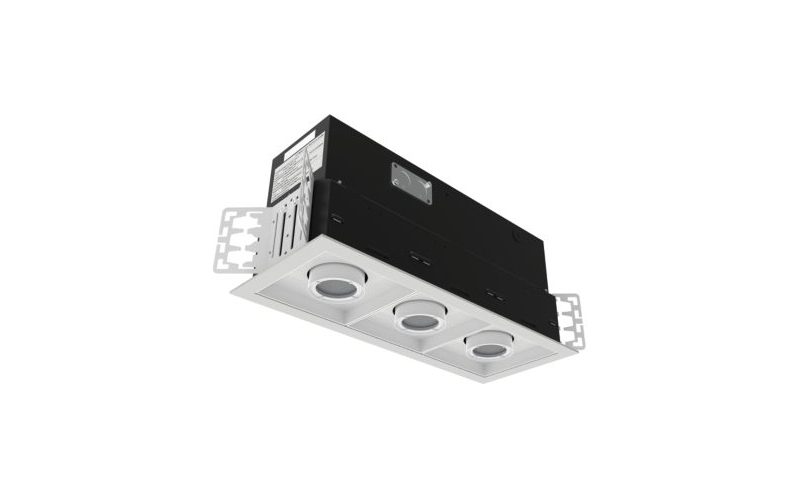

HCM. Multiples Series Multi-Head 1, 2, 3, or 4 Light Adjustable Heads New Construction.
Configure
Add to project
RESOURCES
DESCRIPTION
HCM Multiples feature 1, 2, 3 or 4 multi-heads in a recessed housing. Multi-heads have 0-70° tilt and 355° rotation with 25° Narrow Flood optic included and 15° Spot, 40° Flood available for field change. HCM is 90CRI in 2700K, 3000K, 3500K, 4000K with 1200 lumens per head (nominal). New construction and remodel housings are IC rated in matte white or matte black with Chicago Plenum, emergency and WaveLinx options. HCM is 120-277V with 1%-100% 0-10V dimming and 1%-100% phase dimming capable.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.3"7.6"L: 6.8"7.5"12.2"17.3"12.8"22.5"18"23.2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)14.3 W
- Lumens(Approx)1223 Lm1213 Lm1193 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 1%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*Energy Star*RoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywall
- HousingNew ConstructionChicago Plenum
- Housing Depth7.3 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
