HALO Commercial (Cooper Lighting Solutions)

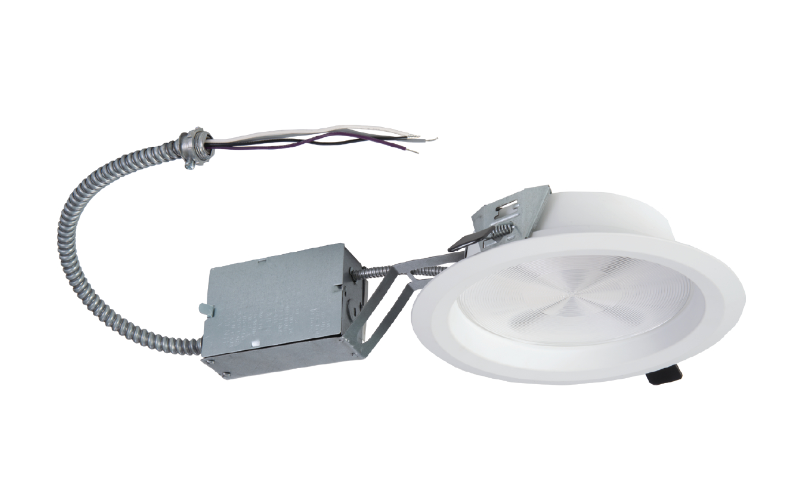

PR8R PR8M. SeleCCTable 8-inch LED retrofit shallow lensed downlight.
Configure
Add to project
RESOURCES
DESCRIPTION
With field-selectable color temperatures, five lumen options, and interchangeable medium and wide lenses; the PR8 series offers the ultimate in flexibility in making final settings on site. The family also offers multiple installation options with new construction/remodel housings, retrofit kit, as well as a surface-mount cylinder.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9 3/4"L: 9 3/4"
- Light SourceLED
- CCT/Color3000K3500K4000KField Select CCT
- CRI80
- Watt(Approx)11.2 W15.5 W22.5 W28.5 W43 W
- Lumens(Approx)1000 Lm1500 Lm2000 Lm3000 Lm4000 Lm
- OpticsDirectWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/NetworkWaveLinxIntegral Sensor
- Power/VoltageIntegralRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*Energy Star*RoHS
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingICChicago PlenumRetrofit
- Housing Depth4 ''
