HALO (Cooper Lighting Solutions)

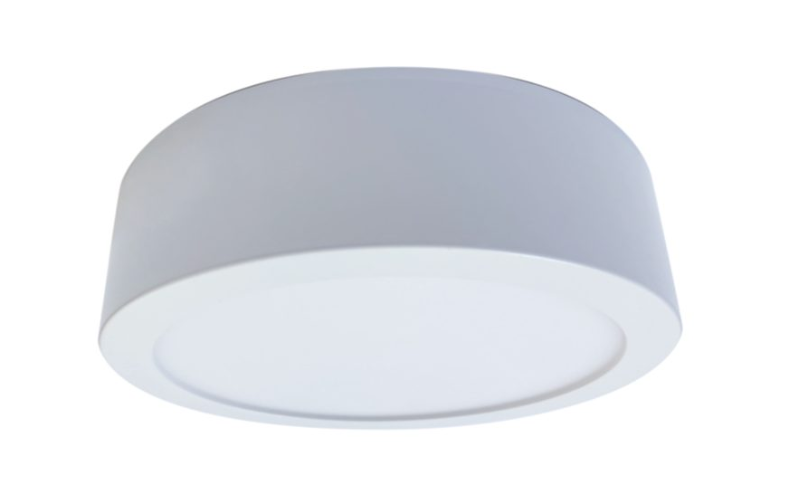

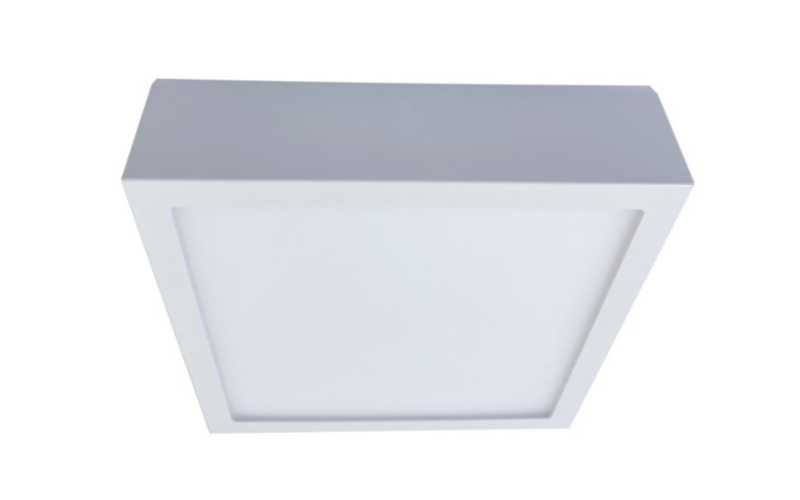

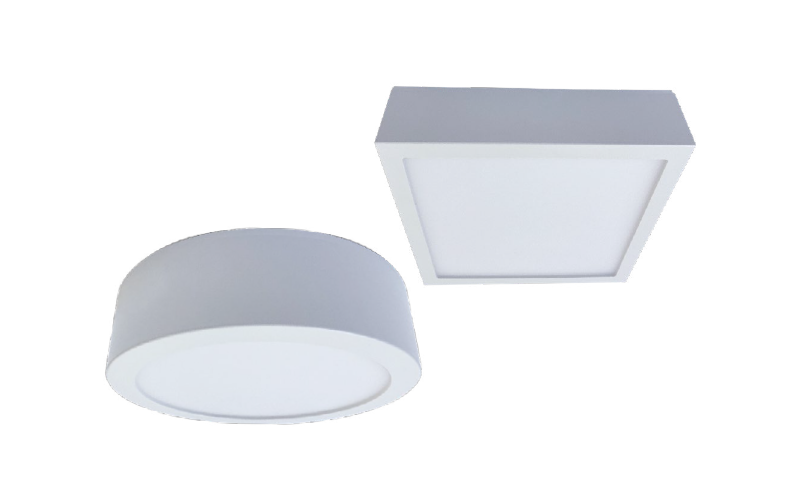

SMD6-EM. 6'' SMD Surface Mount Emergency Battery Backup.
Configure
Add to project
RESOURCES
DESCRIPTION
Combining a modern look and high performance, this ultra-low profile, surface-mount downlight is designed for new construction, remodel and retrofit applications. These 6" lens downlights simply install directly to a junction box or can retrofit 6" insulated ceilings (IC) and non-IC recessed housings and feature 5 CCT selectability.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.5"L: 7.5"H: 2.1"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KField Select CCT
- CRI90
- Watt(Approx)12.6 W18.1 W
- Lumens(Approx)720 Lm1220 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*Energy Star*RoHS
- EnvironmentWet
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSMD6-EM
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
