Holophane (Acuity Brands Lighting)

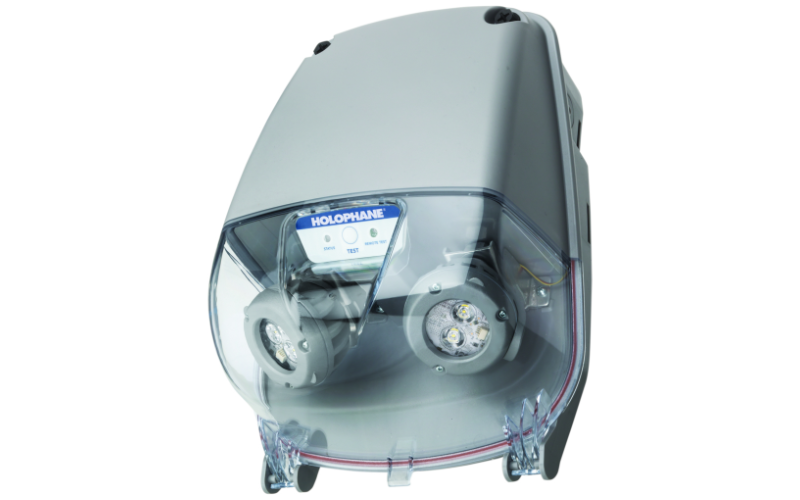

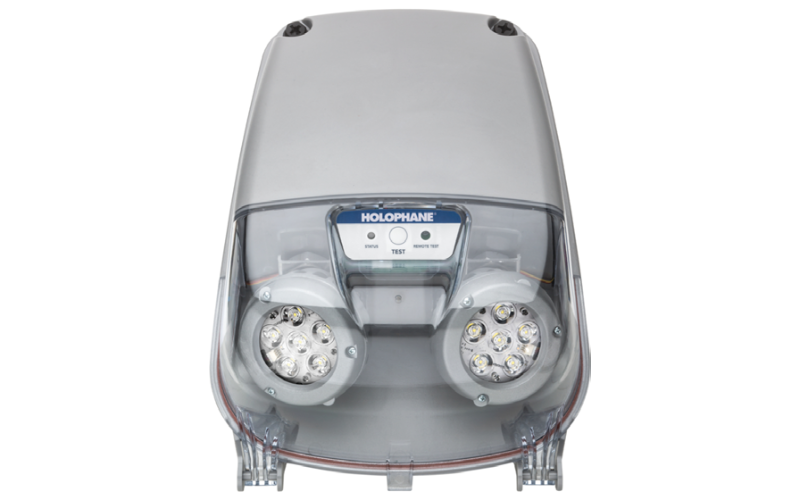

DSL46. DESOTO NEMA 4X.
Configure
Add to project
RESOURCES
DESCRIPTION
The DeSoto™ DSL46 is NEMA 4X, IP66 and NSF rated providing protection in hose-down or harsh environments where moisture, dirt and dust would limit the life of ordinary emergency lighting.
The DeSoto™ DSL46 comes standard with Quick-mounting brackets for ease of installation and provides great spacing at higher mounting heights. The upgraded Lithium Iron Phosphate batteries provide extended run-times and remote capacity. The remote testing and self-diagnostics feature meets and exceeds code required testing while significantly reducing the time and cost of compliance. The DSL46 provides a minimum of 90-minutes of illumination upon loss of AC power with constant light output over the full discharge period.
The DeSoto™ DSL46 comes standard with Quick-mounting brackets for ease of installation and provides great spacing at higher mounting heights. The upgraded Lithium Iron Phosphate batteries provide extended run-times and remote capacity. The remote testing and self-diagnostics feature meets and exceeds code required testing while significantly reducing the time and cost of compliance. The DSL46 provides a minimum of 90-minutes of illumination upon loss of AC power with constant light output over the full discharge period.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 10.42"L: 6.42"H: 13.94"
- Light SourceLED
- CCT/Color
- CRI
- Watt(Approx)6.6 W10.6 W22 W
- Lumens(Approx)640 Lm1100 Lm2200 Lm
- OpticsDirectSpot
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageIntegral120V347V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CULNSFBAA
- EnvironmentIP66
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDSL46
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
