Holophane (Acuity Brands Lighting)
HLSMQ. High Security Confinement Square Surface Mount Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION

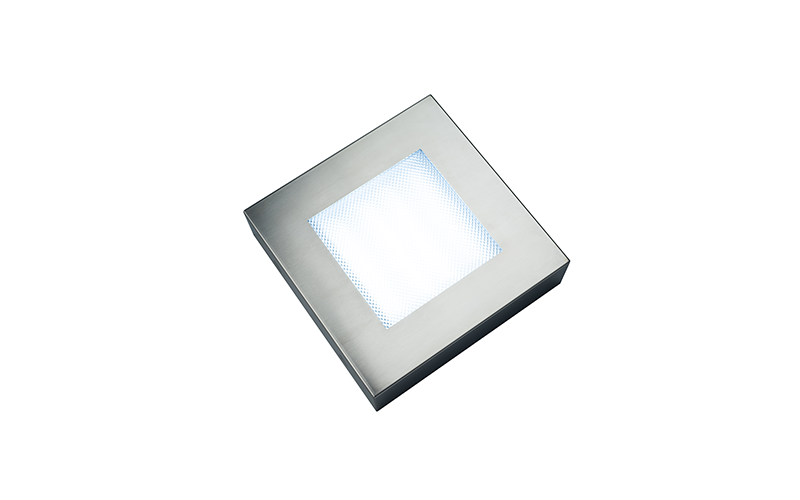

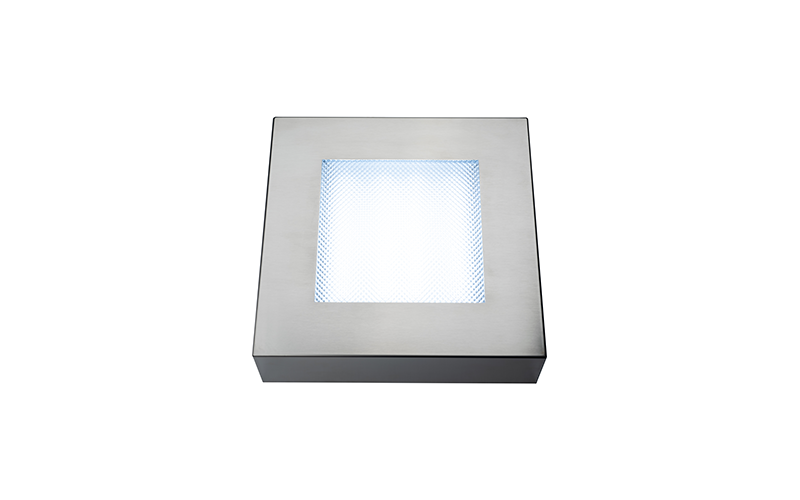

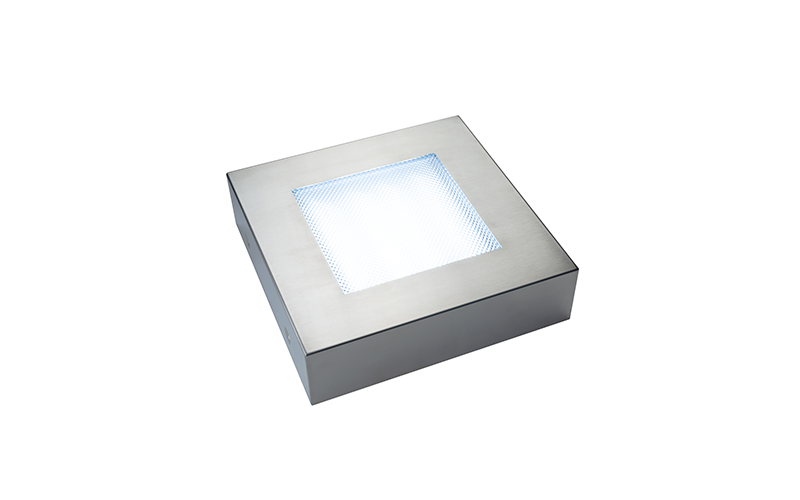

The HLSMQ is a square surface mount confinement luminaire. It is ideally suited for behavioral institutions and correctional facilities. Available options provide suitability for minimum to maximum security locations. Various materials and lumen outputs are available to satisfy nearly any conceivable institutional requirement. It is constructed with a one piece die formed housing in stainless or cold rolled steels and all corners and seams continuously welded smooth. Its hinge design protects from unauthorized fixture entry. It is available in 2700K, 3000K, 3500K, 4000K, and 5000K CCT.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 13.5"L: 13.5"H: 4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI82
- Watt(Approx)28.8 W
- Lumens(Approx)1200 Lm1911 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance130000 h
- CertificatesUL/CULBAA
- EnvironmentWet
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHLSMQ
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
