Holophane (Acuity Brands Lighting)

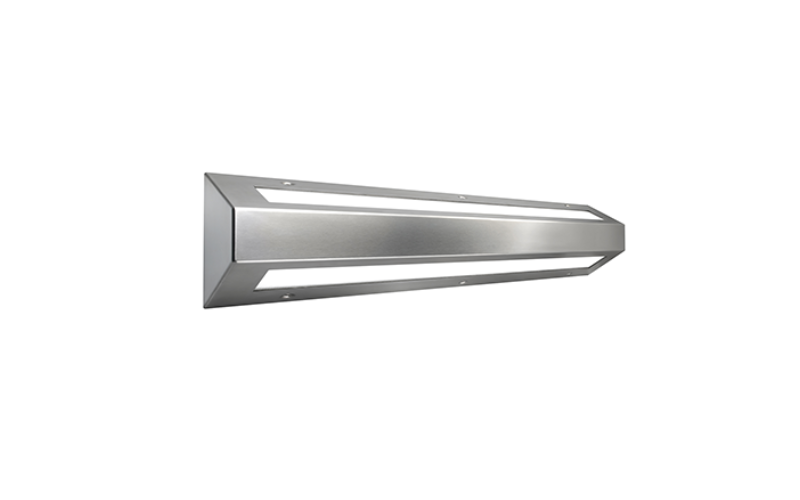

HLWMP. High Security Confinement Wall Mount Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
The HLWMP is a wall mount confinement luminaire. It is ideally suited for behavioral institutions and correctional facilities. Available options provide suitability for minimum to maximum security locations. A ligature resistant design is standard for all variations of the HLWMP series. Various materials and lumen outputs are available to satisfy nearly any conceivable institutional requirement. It is constructed with a one piece die formed housing in stainless or cold rolled steels and all corners and seams continuously welded smooth. Its hinge design protects from unauthorized fixture entry. It is available in 2700K, 3000K, 3500K, 4000K, and 5000K CCT.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 11"L: 15"26"37"48"H: 10.8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI82
- Watt(Approx)27 W53.9 W
- Lumens(Approx)600 Lm1000 Lm1500 Lm1700 Lm2475 Lm2500 Lm3000 Lm3500 Lm4000 Lm4669 Lm4500 Lm5000 Lm5500 Lm5800 Lm6000 Lm6500 Lm7000 Lm7500 Lm8000 Lm
- OpticsDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance130000 h
- CertificatesUL/CULBAA
- EnvironmentWet
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHLWMP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
