Holophane (Acuity Brands Lighting)

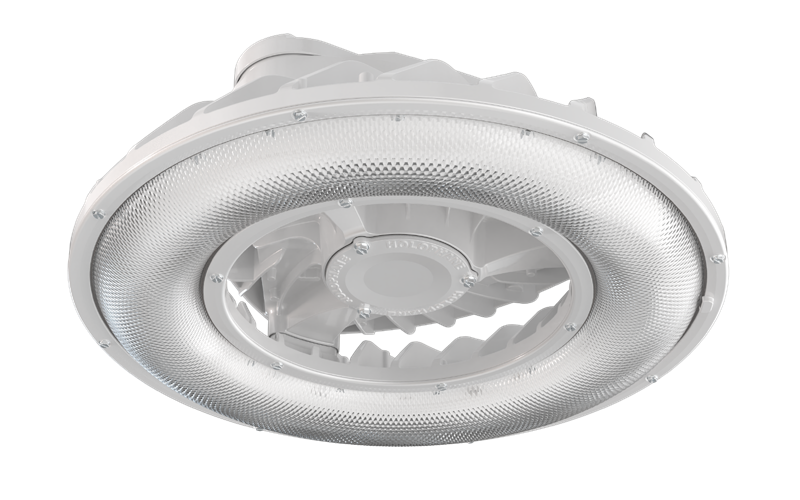

HOLO2. HOLOBAY LED High Bay Wet Location Listed (Large Optical).
Configure
Add to project




RESOURCES
DESCRIPTION
Introducing the next generation of robust round high bays for the most demanding industrial environments, as well as large indoor, commercial, and educational facilities. Designed with features and unmatched electrical, environmental and thermal ratings to withstand the most demanding environments while providing the lowest total cost of ownership and energy savings with superior efficiency, spacings and ease of installation. Precisely engineered die-cast aluminum and borosilicate prismatic glass solution with exceptional illumination, visual comfort and efficiency. The hinged driver door allows for ease of installation and maintenance. Our ultra sleek compact size and full suite of controls options allow this fixture to shine anywhere.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 23.2"L: 23.2"H: 7.5"
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI70 80 90
- Watt(Approx)202 W238 W269 W285 W353 W411 W477 W555 W641 W
- Lumens(Approx)38898 Lm44969 Lm50557 Lm56380 Lm68974 Lm77504 Lm87797 Lm100182 Lm113820 Lm
- OpticsDirectIndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralRemoteUNV 120-277V120V208V220-240V277VUNC 347-480V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance100000 h
- CertificatesCSADLC*BAA
- EnvironmentDampIP66Corrosion Resistant
- Mounting TypePendantWall Arm/CantileverSurfaceYoke
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHOLO2
—
