Holophane (Acuity Brands Lighting)

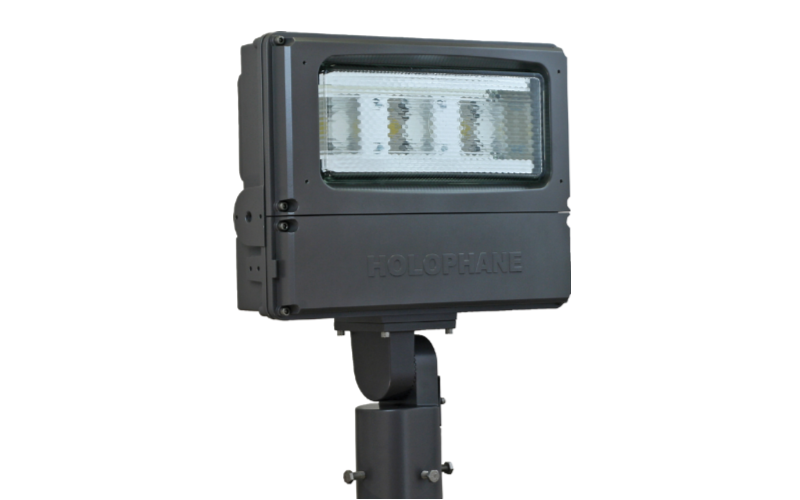

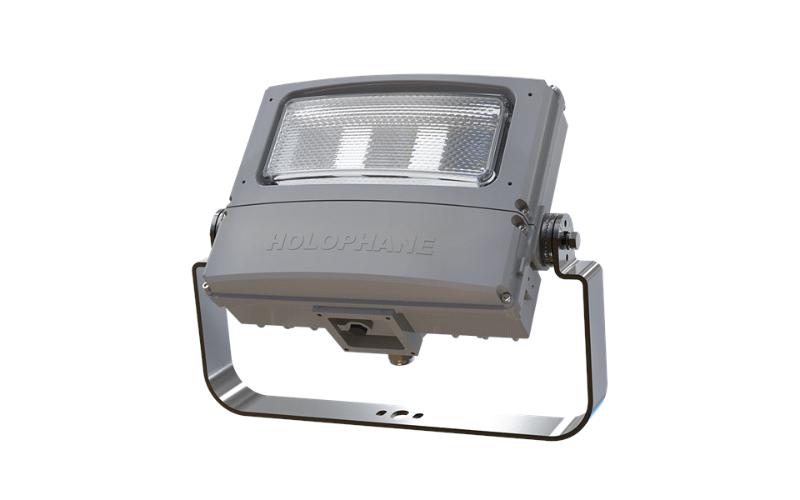

HPFS. Hazardous Predator Small (LED).
Configure
Add to project




RESOURCES
DESCRIPTION
Predator® HPFS hazardous floodlights from Holophane® are built to withstand the harshest environments without sacrificing performance. Versatile and efficient, hazardous Predator LED floodlights offer superior field-to-beam ratios in a rugged, corrosion-resistant housing. With lumen packages up to 28,000 lumens, the HPFS boasts industry-leading efficiency, superior T-code ratings, and versatile mounting options in 100-1000W applications. Embedded controls from DTL® ensure reliable dusk-to-dawn control capabilities, while our signature prismatic borosilicate glass optics prioritize visual comfort. Experience a solution set that covers diverse hazardous applications, delivering the lowest total cost of ownership at market-competitive price points. Robust cast aluminum housing and durable epoxy finish to withstand harsh environments and rated for -40°C to 60°C ambient. Available with multiple NEMA beam pattern choices including 4X4, 4X5, 5X5, 6X5 and 6X6.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.7"L: 17.1"20.7"H: 17.2"20.7"
- Light SourceLED
- CCT/Color2700K3000K4000K5000K
- CRI70
- Watt(Approx)37 W52 W83 W123 W154 W201 W
- Lumens(Approx)5837 Lm7781 Lm12946 Lm18799 Lm23165 Lm28962 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDLC*
- EnvironmentIP66VandalproofHazardousCorrosion Resistant
- Mounting TypeYokeTenon Adapter
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHPFS
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
