Holophane (Acuity Brands Lighting)

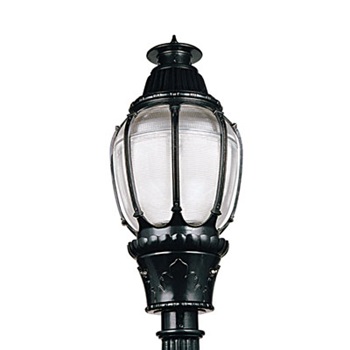

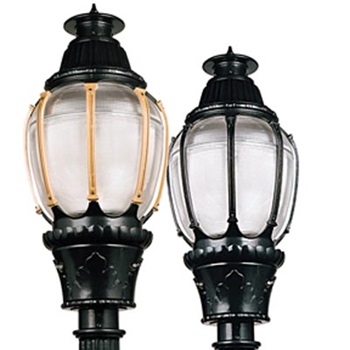

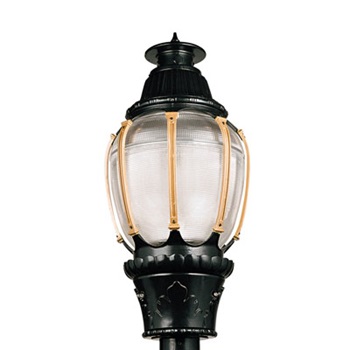

MDLE2. Madeira LED.
 Configure
 Add to project
DESCRIPTION
LED Post-top lighting for city streets, parking lots, campuses, commercial developments, plazas, historic districts, village squares, residential areas, parks, walkways, boulevards, and roadways. The Madeira® LED Post-top blends the latest LED technology with a uniquely styled luminaire, which is reminiscent of turn of the 19th Century, and blends exceptionally well with traditional Spanish architecture. The prismatic glass optics combined with the decorative ribs and replica chimney provides just the right balance of exceptional beauty and performance. The Madeira LED Post-top provides exceptional illumination for roadway applications while saving energy, and reducing maintenance cost in up to 175 watt Metal Halide applications.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 18 1/2"
    L: 18 1/2"
    H: 42 1/8"
  • Light Source
    LED
  • CCT/Color
    3000K4000K
  • CRI
    70
  • Watt(Approx)
    59 W77 W
  • Lumens(Approx)
    6212 Lm7754 Lm
  • Optics
    DirectType IIIType IVType V
  • Adjustable
  • Dimming
    Dim to 3-10%0-10V
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    100000 h
  • Certificates
    CSABAA
  • Environment
    Wet
  • Mounting Type
    Pole/Post Top
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
