Holophane (Acuity Brands Lighting)

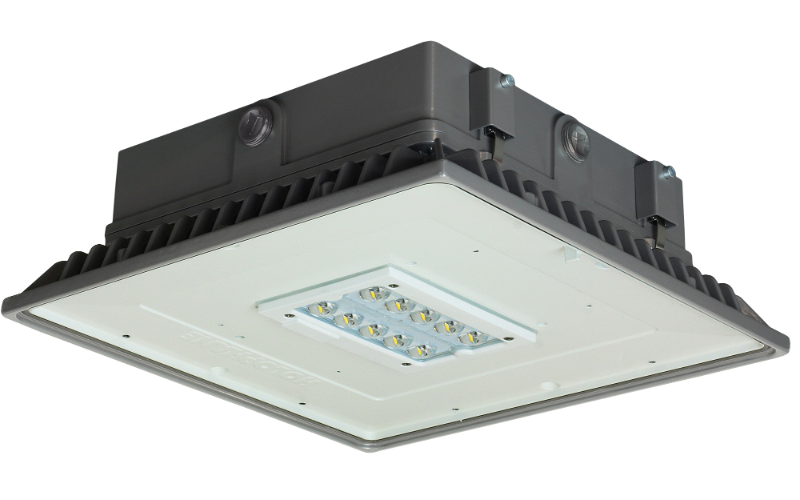

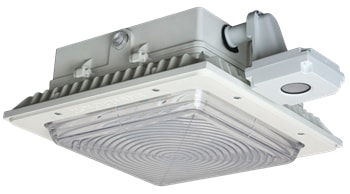

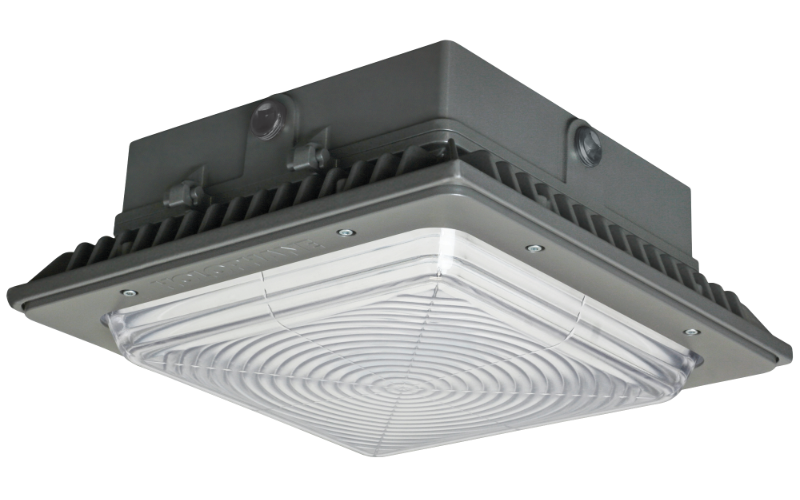

PPSQL2. Parkpak LED Parking Garage Luminaire.
Configure
Add to project




RESOURCES
DESCRIPTION
Parkpak® LED can be applied for either ceiling, wall, pole or swivel pendant mounting arrangements for parking garages, overhead canopies, walkways, parking areas and building perimeters. With a small, low profile footprint & weight, energy savings up to 50%, and expected service life over 20 years, the Parkpak LED parking garage light combines robust mechanical design features with Holophane’s optical expertise and permanence of prismatic glass to excel as a direct retrofit for existing HID luminaires. Parkpak LED replaces 70-250W metal halide luminaires with eight lumen packages from 2,200 to 11,200 lumens and a choice of cutoff optics or prismatic optics (glass or poly) and five distributions. Parkpak LED is available in 3000K, 4000K and 5000K CCT and 70 CRI (80 CRI option) Features include 20kV/10kA extreme surge protection, emergency Backup driver with dual fuse option, and a variety of control options including Acuity Brands Xpoint, an IR motion sensor or Field-adjustable Output.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 14.25"L: 14.25"H: 5.04"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI70 80
- Watt(Approx)25 W33 W42 W51 W55 W66 W80 W96 W
- Lumens(Approx)3133 Lm4045 Lm4885 Lm5640 Lm7312 Lm8413 Lm9784 Lm11225 Lm
- OpticsDirectMediumFloodWide FloodGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V277VUNC 347-480V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesCSADLC*T24*BAA
- EnvironmentIP66
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
