Holophane (Acuity Brands Lighting)

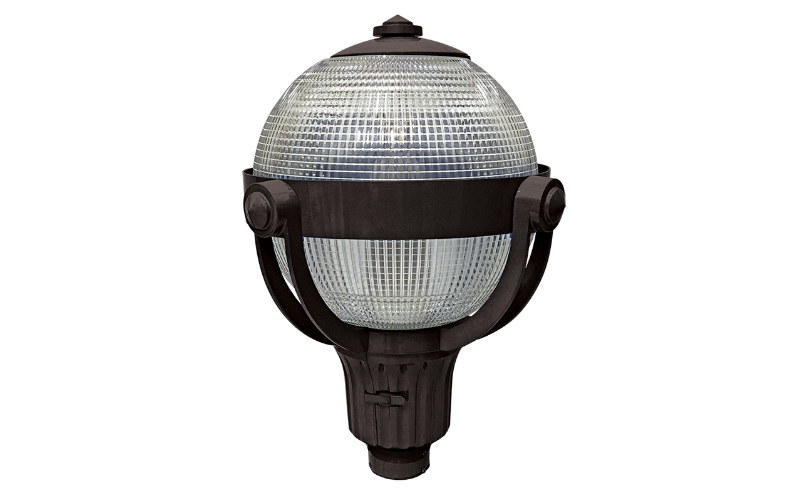

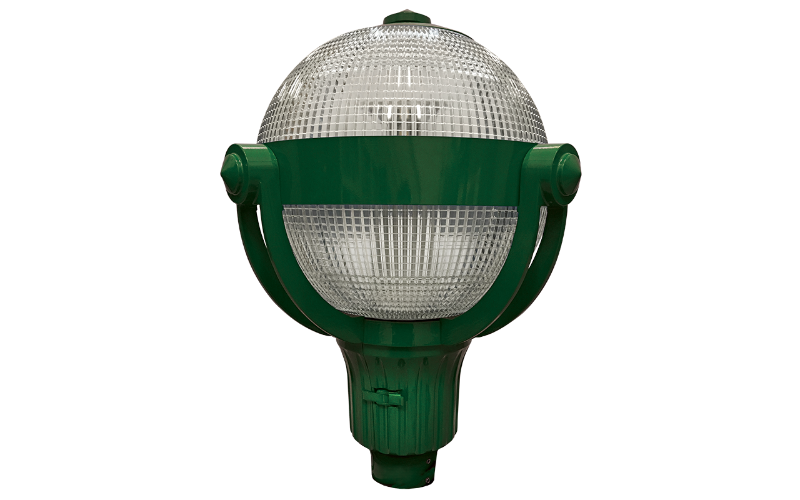

RFUE3. Riverfront Utility LED3.
Configure
Add to project



RESOURCES
DESCRIPTION
Typical applications for RFUE3 include city streets, downtown renovation, historical districts, campuses, residential areas, parking lots, parks and walkways. The Riverfront® LED RFUE3 series is designed to complement exterior landscape and site architecture by bringing both historically significant and classic Euro-styled elegance to up to 400 watt outdoor lighting applications. By incorporating a variety of sphere types and decorative trim, the RFUE3 series can adapt to any architectural theme. Specially molded prisms direct light where it is needed, in a controlled distribution, giving enhanced spacing between luminaires while providing superior uniformity and visual comfort. Riverfront solutions also offer state-of-the-art controls and sensor solutions from DTL® and nLight®.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 19 5/8"25"L: 19 5/8"25"H: 32 5/8"
- Light SourceLED
- CCT/Color2700K3000K4000K5000K
- CRI70
- Watt(Approx)21 W34 W54 W76 W94 W115 W143 W
- Lumens(Approx)3771 Lm5983 Lm8979 Lm12374 Lm14911 Lm17564 Lm20079 Lm
- OpticsDirectType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesCSAMade in USABAA
- EnvironmentIP66Corrosion Resistant
- Mounting TypePole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
