Holophane (Acuity Brands Lighting)

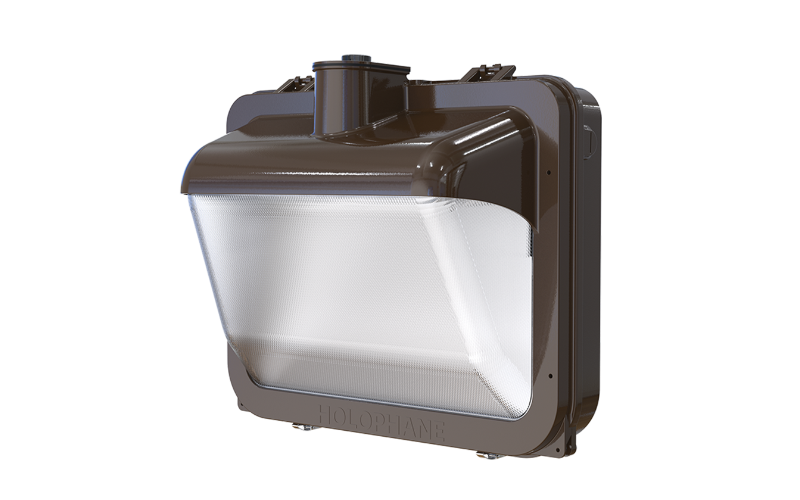

WCNG/WCNP. WallConnect LED.
Configure
Add to project
RESOURCES
DESCRIPTION
WallConnect from Holophane® provides customers best-in-class wall, security and underpass lighting with innovative visually comfortable optics. WallConnect utilizes trusted DTL® and nLight® controls, as well as next generation DALI® D4i digital drivers. Embedded, low voltage DC controls featuring BlueTooth® technology provide asset management for modern secure web and mobile applications with a multitude of solutions to enable future smart city sensors including Zhaga receptacles. WallConnect also features a sleeker, smaller and lighter form factor combined with high lumens per watt to reduce operational costs and carbon footprint. Prismatic refractor available in Borosilicate Glass (WCNG) or Polycarbonate (WCNP).
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.2"L: 18.1"H: 14.6"
- Light SourceLED
- CCT/Color2700K3000K4000K5000K
- CRI70
- Watt(Approx)16 W35 W51 W72 W93 W117 W128 W138 W
- Lumens(Approx)2225 Lm4362 Lm6795 Lm9252 Lm11725 Lm14023 Lm15395 Lm15884 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULDLC*BAA
- EnvironmentWet
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWCNG-WCNP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
