EXO Outdoor Lighting (Current)
SGD. Dusk-to-Dawn SLING SWITCHABLE SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION

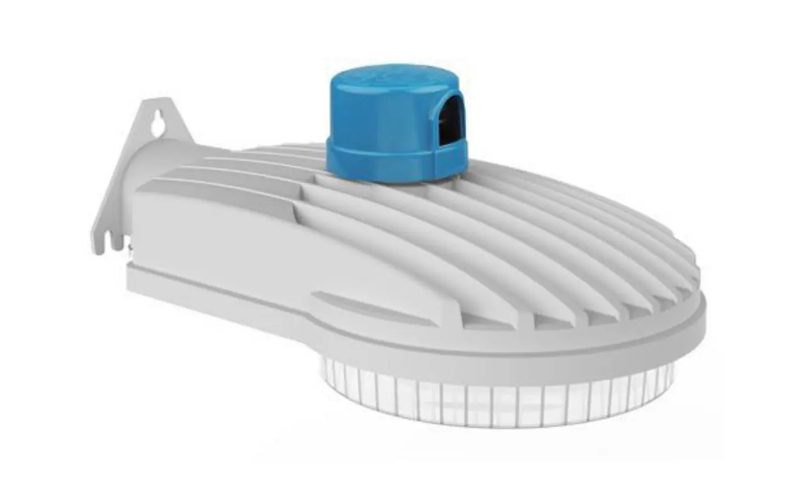

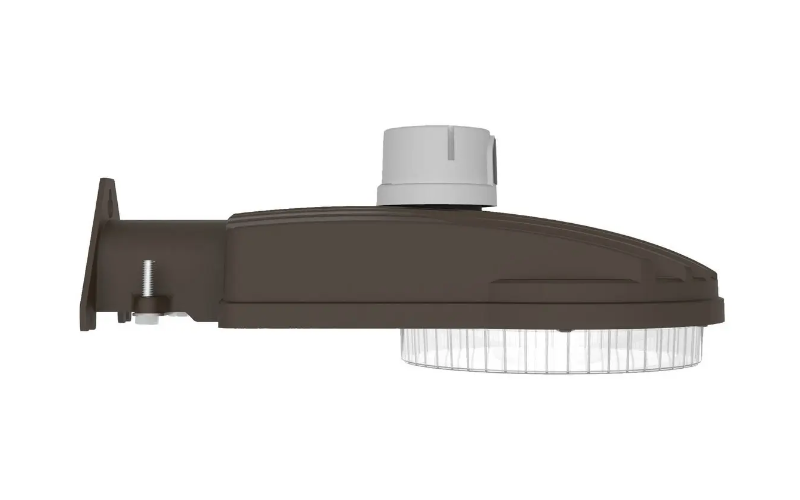

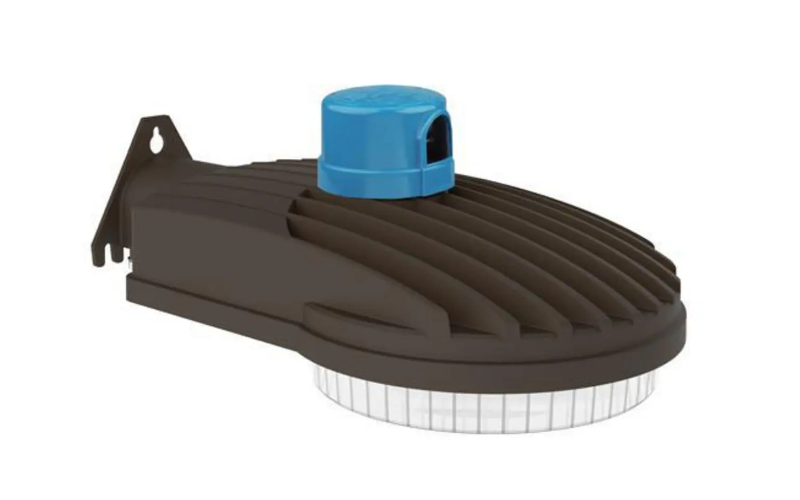

Multi-purpose dusk-to-dawn LED luminaire provides general purpose area, security, roadway, and landscape lighting
- Multi-purpose dusk-to-dawn LED luminaire provides general purpose area, security, roadway and landscape lighting
- Versatile mounting options include integral bracket that adjusts to fit both 2-3/8" & 1-5/8" OD mast arms, direct wall/surface mounting
- Zero uplight design for environmentally friendly installations
- Rugged die-cast aluminum housing with textured gray or dark bronze powder paint provides corrosion resistance and clean finish
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.9"L: 16.1"H: 6.4"
- Light SourceLED
- CCT/Color4000K4500K5000KField Select CCT
- CRI70
- Watt(Approx)40 W60 W
- Lumens(Approx)5696 Lm8175 Lm8274 Lm
- OpticsDirectType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULDLC*
- EnvironmentIP65Corrosion Resistant
- Mounting TypeWall Arm/CantileverClamp
- Housing
- Housing Depth
