DESCRIPTION

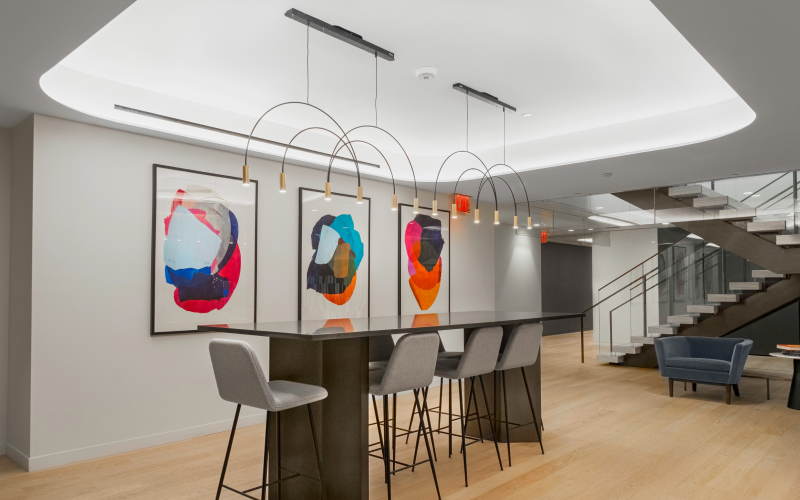

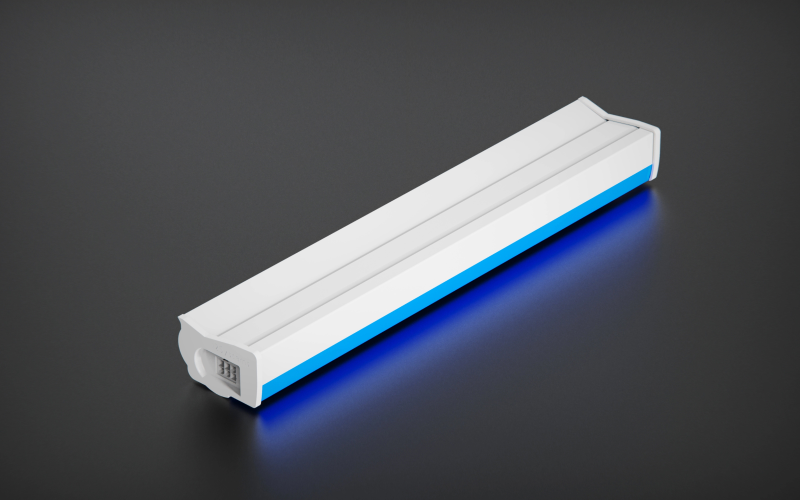

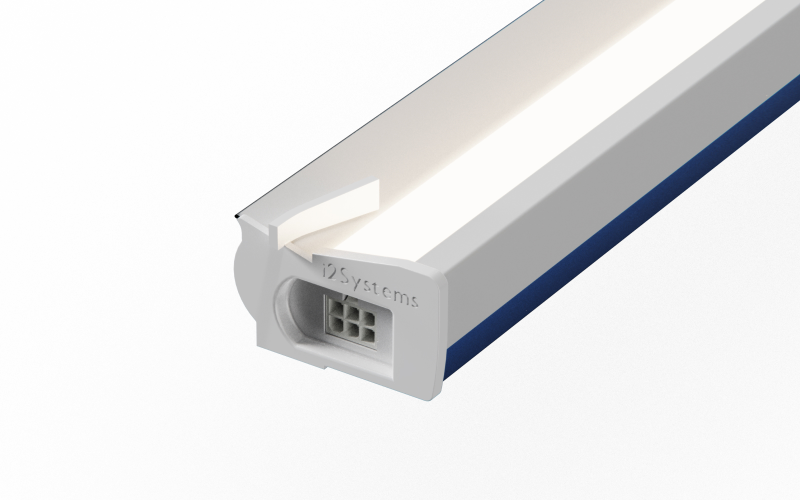

Volumetric indirect LED lighting solution engineered for coves, ceilings, and wall details. Using patented asymmetric optics, it delivers uniform horizontal and vertical illuminance with glare control and efficacy >100 lm/W.
Available in Static White (2700–6500 K), WarmDim (1850–3000 K), and Tunable White (1850–6500 K) with CRI 92+ (98+ optional), Compose offers smooth 0.1% dimming and operates on 120–277 VAC with power densities of 2–12 W/ft (Static White) and 5–12 W/ft (WarmDim & Tunable).
Control compatibility includes 0-10V, ELV (Static White), DMX, DALI/DALI-2, and SensorConnect integrations. Mounting options support linear or curved geometries with gypsum cove, plaster-in, wall mount, ACT/acoustic ceiling tile cove, and universal surface.
Certified to UL / cUL, Compose meets WELL Building Standard v2 requirements, ensuring code-compliant, high-quality indirect illumination.
Available in Static White (2700–6500 K), WarmDim (1850–3000 K), and Tunable White (1850–6500 K) with CRI 92+ (98+ optional), Compose offers smooth 0.1% dimming and operates on 120–277 VAC with power densities of 2–12 W/ft (Static White) and 5–12 W/ft (WarmDim & Tunable).
Control compatibility includes 0-10V, ELV (Static White), DMX, DALI/DALI-2, and SensorConnect integrations. Mounting options support linear or curved geometries with gypsum cove, plaster-in, wall mount, ACT/acoustic ceiling tile cove, and universal surface.
Certified to UL / cUL, Compose meets WELL Building Standard v2 requirements, ensuring code-compliant, high-quality indirect illumination.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.18"L: Run length (Ft)H: 1.33"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K4500K5000K5700K6500KYellow/AmberRedGreenBlue
- CRI
- Watt(Approx)5 W/Ft6 W/Ft7 W/Ft8 W/Ft9 W/Ft10 W/Ft11 W/Ft12 W/Ft
- Lumens(Approx)481 Lm/Ft604 Lm/Ft724 Lm/Ft869 Lm/Ft980 Lm/Ft1091 Lm/Ft1186 Lm/Ft1297 Lm/Ft
- OpticsIndirectGeneral Diffused
- Adjustable
- DimmingDMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULMade in USARoHS
- EnvironmentDampHealthcare General
- Mounting TypeSurface
- Housing
- Housing Depth
