i2Systems
Compose® Cove System Static White.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

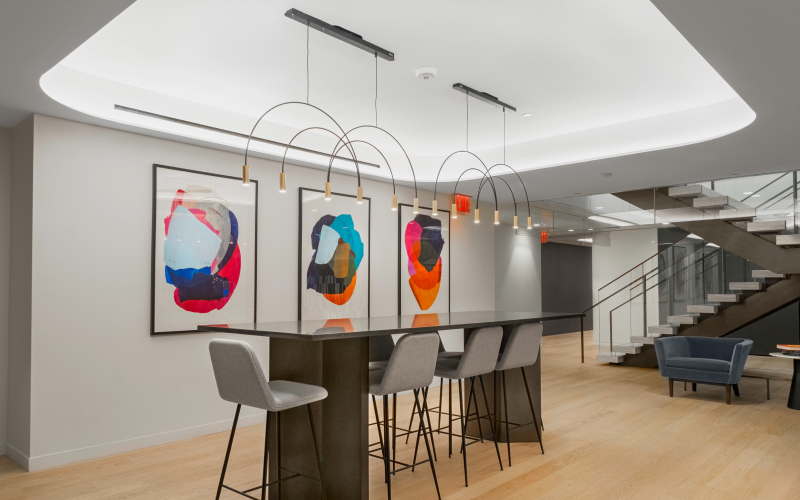

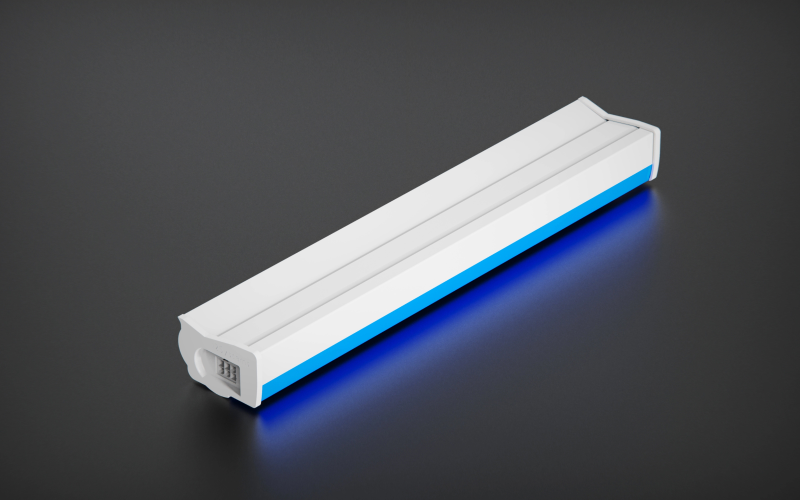

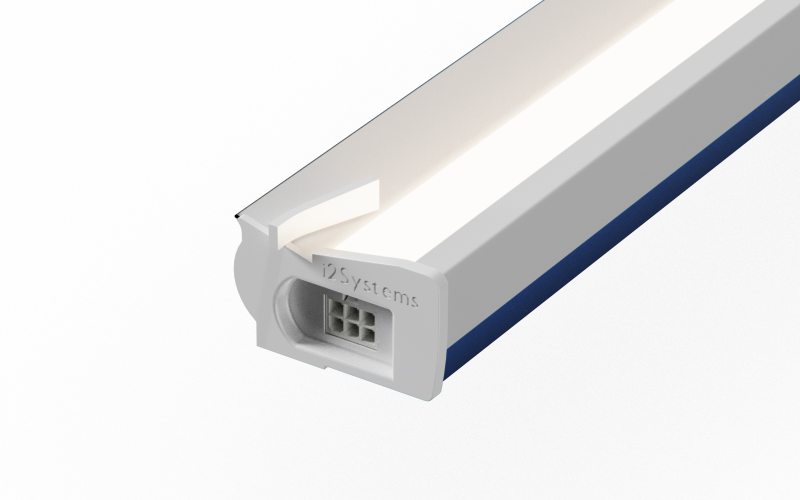

Volumetric indirect LED lighting solution engineered for coves, ceilings, and wall details. Using patented asymmetric optics, it delivers uniform horizontal and vertical illuminance with glare control and efficacy >100 lm/W.
Available in Static White (2700–6500 K), WarmDim (1850–3000 K), and Tunable White (1850–6500 K) with CRI 92+ (98+ optional), Compose offers smooth 0.1% dimming and operates on 120–277 VAC with power densities of 2–12 W/ft (Static White) and 5–12 W/ft (WarmDim & Tunable).
Control compatibility includes 0-10V, ELV (Static White), DMX, DALI/DALI-2, and SensorConnect integrations. Mounting options support linear or curved geometries with gypsum cove, plaster-in, wall mount, ACT/acoustic ceiling tile cove, and universal surface.
Certified to UL / cUL, Compose meets WELL Building Standard v2 requirements, ensuring code-compliant, high-quality indirect illumination.
Available in Static White (2700–6500 K), WarmDim (1850–3000 K), and Tunable White (1850–6500 K) with CRI 92+ (98+ optional), Compose offers smooth 0.1% dimming and operates on 120–277 VAC with power densities of 2–12 W/ft (Static White) and 5–12 W/ft (WarmDim & Tunable).
Control compatibility includes 0-10V, ELV (Static White), DMX, DALI/DALI-2, and SensorConnect integrations. Mounting options support linear or curved geometries with gypsum cove, plaster-in, wall mount, ACT/acoustic ceiling tile cove, and universal surface.
Certified to UL / cUL, Compose meets WELL Building Standard v2 requirements, ensuring code-compliant, high-quality indirect illumination.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.18"L: Run length (Ft)H: 1.33"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K4500K5000K5700K6500K
- CRI92 98 83
- Watt(Approx)2 W/Ft3 W/Ft4 W/Ft5 W/Ft6 W/Ft7 W/Ft8 W/Ft9 W/Ft10 W/Ft11 W/Ft12 W/Ft
- Lumens(Approx)135 Lm/Ft228 Lm/Ft286 Lm/Ft401 Lm/Ft504 Lm/Ft606 Lm/Ft733 Lm/Ft970 Lm/Ft1078 Lm/Ft1174 Lm/Ft1277 Lm/Ft
- OpticsIndirectGeneral Diffused
- Adjustable
- DimmingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULMade in USARoHS
- EnvironmentDampHealthcare General
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
