i2Systems

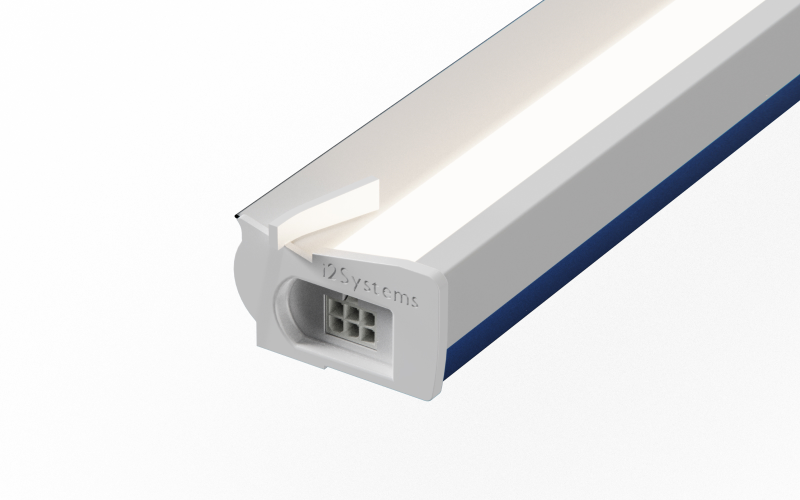

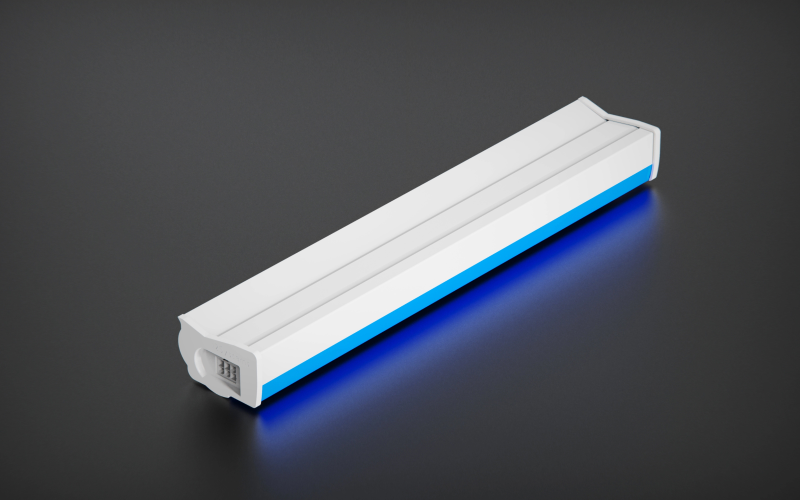

Compose® Cove System Tunable White with i2 Color Demand.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

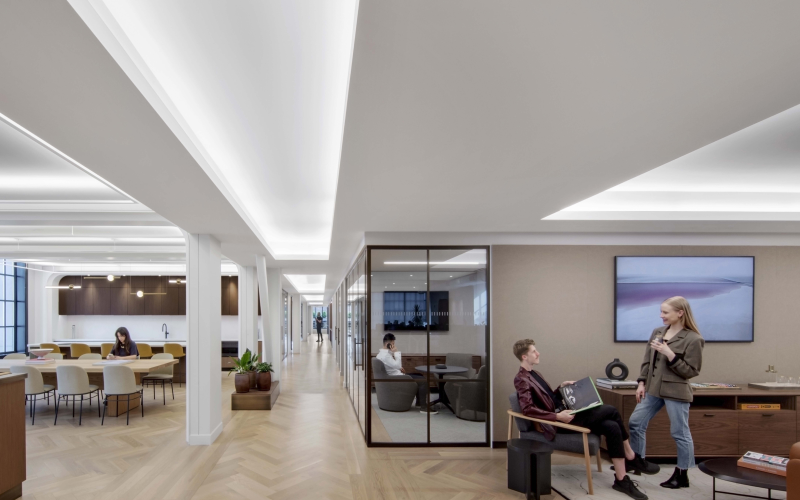

Volumetric indirect LED lighting solution engineered for coves, ceilings, and wall details. Using patented asymmetric optics, it delivers uniform horizontal and vertical illuminance with glare control and efficacy >100 lm/W.
Available in Static White (2700–6500 K), WarmDim (1850–3000 K), and Tunable White (1850–6500 K) with CRI 92+ (98+ optional), Compose offers smooth 0.1% dimming and operates on 120–277 VAC with power densities of 2–12 W/ft (Static White) and 5–12 W/ft (WarmDim & Tunable).
Control compatibility includes 0-10V, ELV (Static White), DMX, DALI/DALI-2, and SensorConnect integrations. Mounting options support linear or curved geometries with gypsum cove, plaster-in, wall mount, ACT/acoustic ceiling tile cove, and universal surface.
Certified to UL / cUL, Compose meets WELL Building Standard v2 requirements, ensuring code-compliant, high-quality indirect illumination.
Available in Static White (2700–6500 K), WarmDim (1850–3000 K), and Tunable White (1850–6500 K) with CRI 92+ (98+ optional), Compose offers smooth 0.1% dimming and operates on 120–277 VAC with power densities of 2–12 W/ft (Static White) and 5–12 W/ft (WarmDim & Tunable).
Control compatibility includes 0-10V, ELV (Static White), DMX, DALI/DALI-2, and SensorConnect integrations. Mounting options support linear or curved geometries with gypsum cove, plaster-in, wall mount, ACT/acoustic ceiling tile cove, and universal surface.
Certified to UL / cUL, Compose meets WELL Building Standard v2 requirements, ensuring code-compliant, high-quality indirect illumination.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.18"L: Run length (Ft)H: 1.33"
- Light SourceLED
- CCT/ColorTunable White
- CRI92 98
- Watt(Approx)5 W/Ft6 W/Ft7 W/Ft8 W/Ft9 W/Ft10 W/Ft11 W/Ft12 W/Ft
- Lumens(Approx)401 Lm/Ft504 Lm/Ft606 Lm/Ft733 Lm/Ft970 Lm/Ft1078 Lm/Ft1174 Lm/Ft1277 Lm/Ft
- OpticsIndirectGeneral Diffused
- Adjustable
- Dimming0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULMade in USARoHS
- EnvironmentDampHealthcare General
- Mounting TypeSurface
- Housing
- Housing Depth
