DESCRIPTION

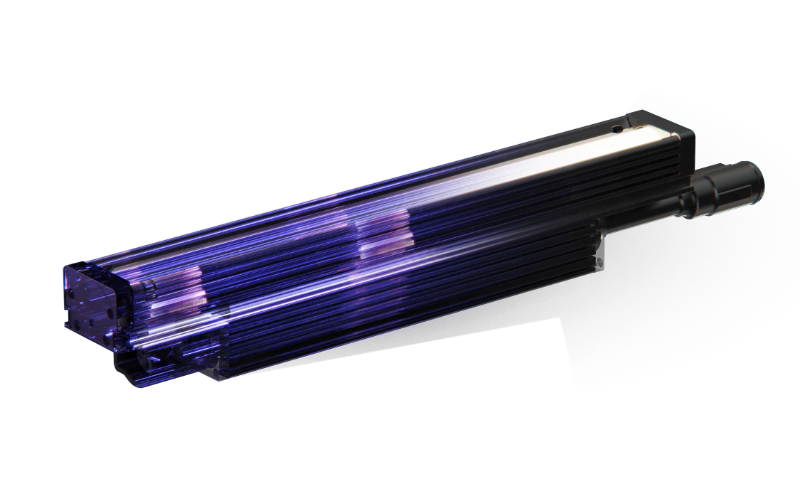

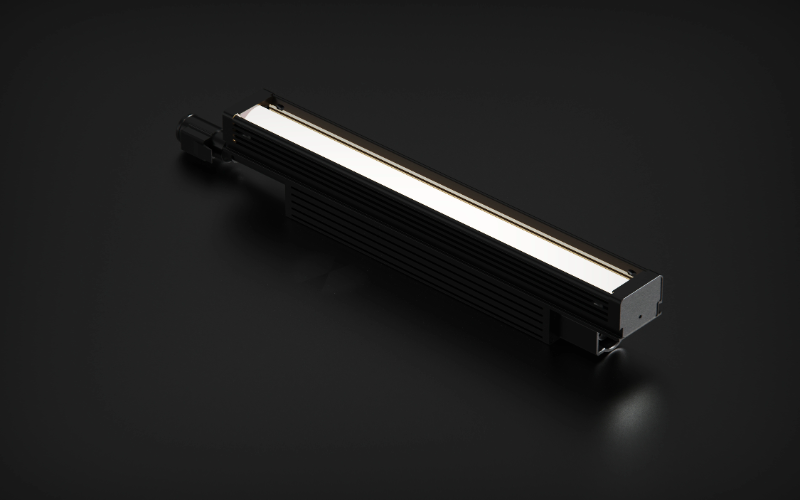

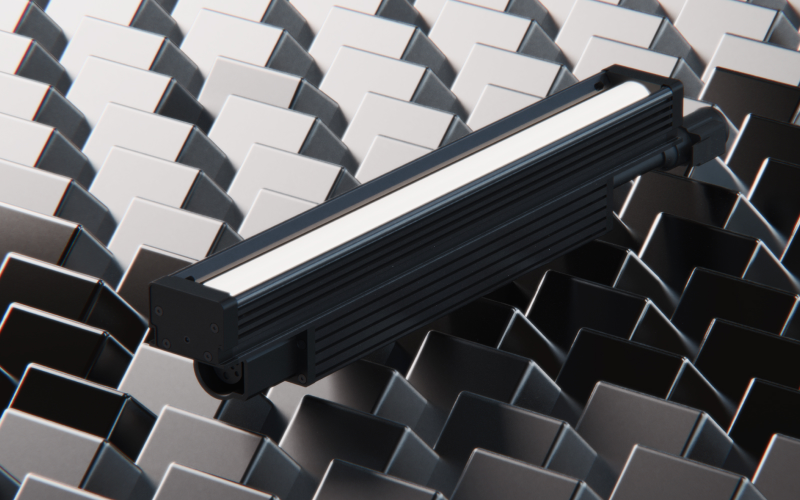

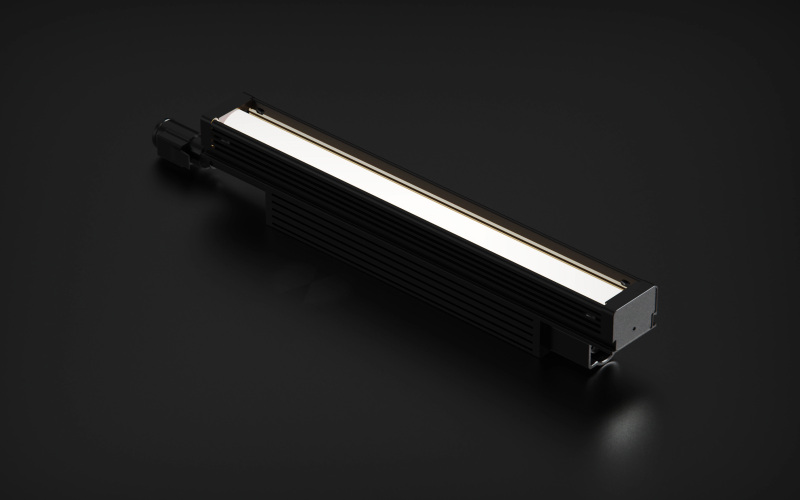

Small form-factor, high-performance linear LED lighting solution engineered for wall grazing, wall washing, and general illumination, especially in harsh or exterior environments. Graphite’s rugged design features aircraft-grade aluminum housing with a mil-spec anodized finish, sealed to IP66 and rated for wet outdoor use.
Available in Static White, Tunable White (i2 ColorDemand), and WarmDim collection, all with CRI 92+ standard (98+ optional). It delivers smooth dimming to 0.1%, operating on 120-277 VAC (plug & play), with programmable power outputs from 5-14 W/ft depending on the beam and color mode.
Graphite offers a selection of beam spreads—extra narrow to wide (approx. 10°, 30°, 65°, 82°) to suit different illumination needs. Offered in standard lengths (12”, 18”, 48”) for flexible field application. Active Thermal Management protects performance in elevated temperatures.

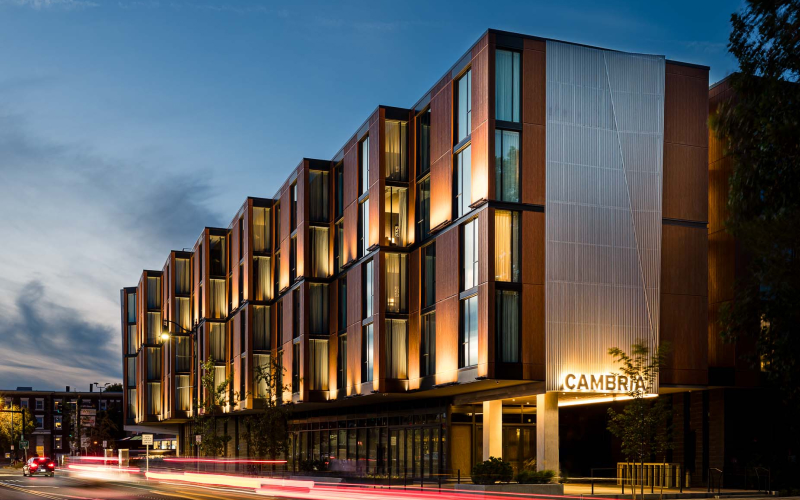

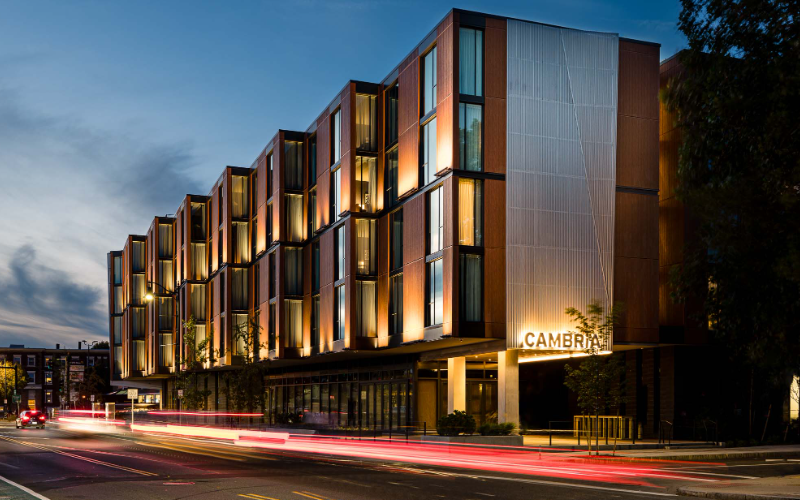

Certified to UL / cUL, with surge protection built in, Graphite ensures durable, code-compliant lighting suitable for demanding exterior applications requiring both precision and resilience.
Available in Static White, Tunable White (i2 ColorDemand), and WarmDim collection, all with CRI 92+ standard (98+ optional). It delivers smooth dimming to 0.1%, operating on 120-277 VAC (plug & play), with programmable power outputs from 5-14 W/ft depending on the beam and color mode.
Graphite offers a selection of beam spreads—extra narrow to wide (approx. 10°, 30°, 65°, 82°) to suit different illumination needs. Offered in standard lengths (12”, 18”, 48”) for flexible field application. Active Thermal Management protects performance in elevated temperatures.
Certified to UL / cUL, with surge protection built in, Graphite ensures durable, code-compliant lighting suitable for demanding exterior applications requiring both precision and resilience.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.56"L: Run length (Ft)H: 2.7"2.72"2.69"
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to Warm3500K Dim to Warm
- CRI83 92
- Watt(Approx)5 W/Ft6 W/Ft7 W/Ft8 W/Ft9 W/Ft10 W/Ft11 W/Ft12 W/Ft13 W/Ft14 W/Ft
- Lumens(Approx)385 Lm/Ft444 Lm/Ft533 Lm/Ft622 Lm/Ft711 Lm/Ft770 Lm/Ft844 Lm/Ft933 Lm/Ft1007 Lm/Ft1110 Lm/Ft
- OpticsIndirectGrazingFloodWide Flood
- AdjustableAdjustable
- Dimming0-10VDMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULMade in USARoHS
- EnvironmentIP66
- Mounting TypeWall Arm/CantileverSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
