i2Systems
i2Cove™ ACT: Ceiling-to-Wall Static White.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

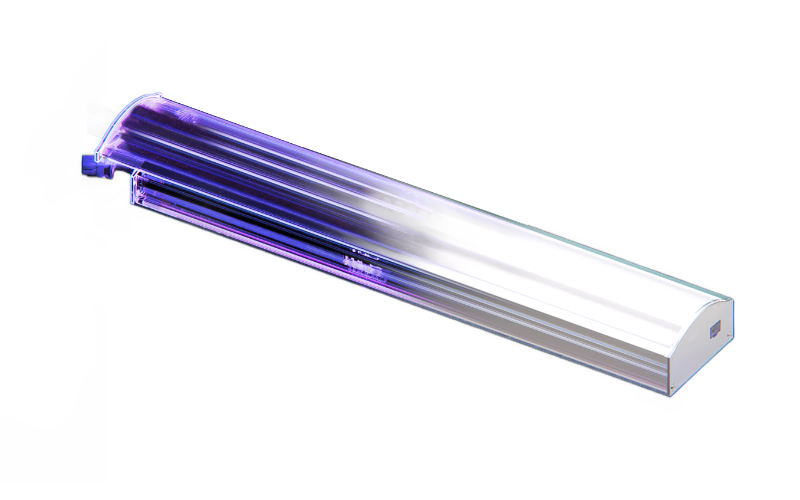

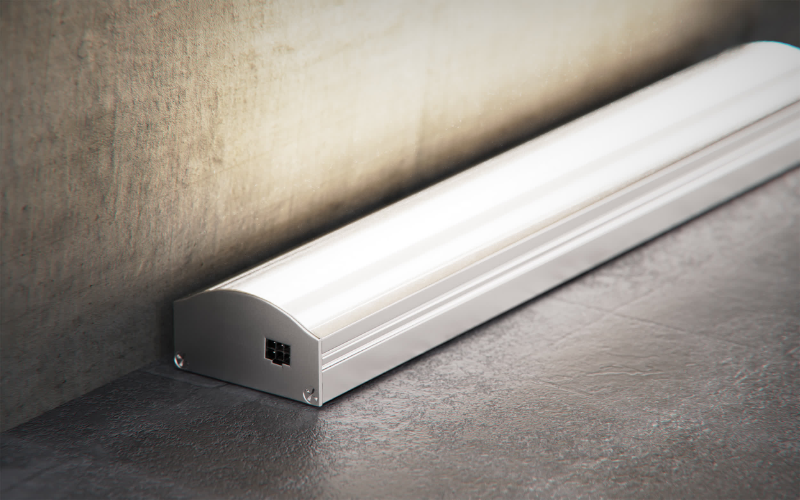

Professional-grade LED lighting solution engineered for architectural coves, ceilings, wall details, and curved geometries. With a low 1"" profile and precision optics, i2Cove delivers uniform illumination, razor-sharp color consistency, and efficacy greater than 100 lm/W.
Available in Static White (2700–6500 K), WarmDim (1850–3000 K), and Tunable White (1850–6500 K) with CRI 92+ (98+ optional), i2Cove offers smooth 0.1% dimming and operates on 120–277 VAC with power densities of 2–12 W/ft (Static White) and 5–12 W/ft (WarmDim & Tunable).
Control options include 0–10V, ELV (Static White), DMX, DALI/DALI-2, and SensorConnect integrations. Mounting solutions support plaster-in, wall mount, surface mount, perimeter coves, acoustic tile coves, and continuous linear or curved runs.
Certified to UL / cUL, i2Cove meets WELL Building Standard v2 requirements, ensuring code-compliant, high-quality indirect illumination for architectural interiors.
Available in Static White (2700–6500 K), WarmDim (1850–3000 K), and Tunable White (1850–6500 K) with CRI 92+ (98+ optional), i2Cove offers smooth 0.1% dimming and operates on 120–277 VAC with power densities of 2–12 W/ft (Static White) and 5–12 W/ft (WarmDim & Tunable).
Control options include 0–10V, ELV (Static White), DMX, DALI/DALI-2, and SensorConnect integrations. Mounting solutions support plaster-in, wall mount, surface mount, perimeter coves, acoustic tile coves, and continuous linear or curved runs.
Certified to UL / cUL, i2Cove meets WELL Building Standard v2 requirements, ensuring code-compliant, high-quality indirect illumination for architectural interiors.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.37"L: Run length (Ft)H: 1.72"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K4500K5000K5700K6500K
- CRI92
- Watt(Approx)2 W/Ft3 W/Ft4 W/Ft5 W/Ft6 W/Ft7 W/Ft8 W/Ft9 W/Ft10 W/Ft11 W/Ft12 W/Ft
- Lumens(Approx)135 Lm/Ft228 Lm/Ft286 Lm/Ft401 Lm/Ft504 Lm/Ft606 Lm/Ft733 Lm/Ft970 Lm/Ft1078 Lm/Ft1174 Lm/Ft1277 Lm/Ft
- OpticsIndirectGeneral Diffused
- Adjustable
- DimmingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULMade in USARoHS
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
