i2Systems

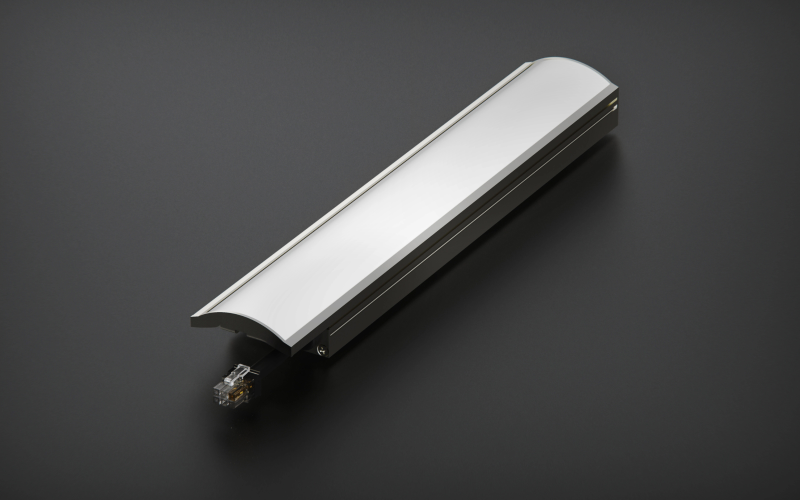

i2Cove™ ACT: Ceiling-to-Wall Tunable White with i2 Color Demand.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Professional-grade LED lighting solution engineered for architectural coves, ceilings, wall details, and curved geometries. With a low 1"" profile and precision optics, i2Cove delivers uniform illumination, razor-sharp color consistency, and efficacy greater than 100 lm/W.
Available in Static White (2700–6500 K), WarmDim (1850–3000 K), and Tunable White (1850–6500 K) with CRI 92+ (98+ optional), i2Cove offers smooth 0.1% dimming and operates on 120–277 VAC with power densities of 2–12 W/ft (Static White) and 5–12 W/ft (WarmDim & Tunable).
Control options include 0–10V, ELV (Static White), DMX, DALI/DALI-2, and SensorConnect integrations. Mounting solutions support plaster-in, wall mount, surface mount, perimeter coves, acoustic tile coves, and continuous linear or curved runs.
Certified to UL / cUL, i2Cove meets WELL Building Standard v2 requirements, ensuring code-compliant, high-quality indirect illumination for architectural interiors.
Available in Static White (2700–6500 K), WarmDim (1850–3000 K), and Tunable White (1850–6500 K) with CRI 92+ (98+ optional), i2Cove offers smooth 0.1% dimming and operates on 120–277 VAC with power densities of 2–12 W/ft (Static White) and 5–12 W/ft (WarmDim & Tunable).
Control options include 0–10V, ELV (Static White), DMX, DALI/DALI-2, and SensorConnect integrations. Mounting solutions support plaster-in, wall mount, surface mount, perimeter coves, acoustic tile coves, and continuous linear or curved runs.
Certified to UL / cUL, i2Cove meets WELL Building Standard v2 requirements, ensuring code-compliant, high-quality indirect illumination for architectural interiors.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.37"L: Run length (Ft)H: 1.72"
- Light SourceLED
- CCT/ColorTunable White
- CRI92 98 83
- Watt(Approx)5 W/Ft6 W/Ft7 W/Ft8 W/Ft9 W/Ft10 W/Ft11 W/Ft12 W/Ft
- Lumens(Approx)481 Lm/Ft604 Lm/Ft724 Lm/Ft869 Lm/Ft980 Lm/Ft1091 Lm/Ft1186 Lm/Ft1297 Lm/Ft
- OpticsIndirectGeneral Diffused
- Adjustable
- Dimming0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULMade in USARoHS
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
