i2Systems
Runway® Cove System Warm Dim.
 Configure
 Add to project
DESCRIPTION

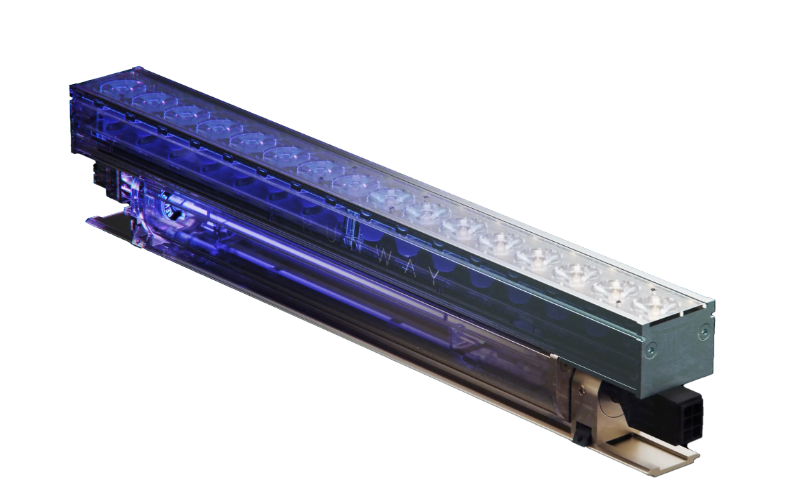

The Runway™ linear LED system delivers precise wall grazing, washing, and accent lighting with a four-part optical engine that ensures uniform, striation-free illumination at setbacks as small as ⅛ inch. It is available in Static White from 2700 K to 6500 K, WarmDim from 1850 K to 3000 K, and Tunable White from 1850 K to 6500 K, all with CRI 92+ and an optional 98 CRI.

Operating on 120–277 VAC with power densities from 2–12 W/ft, Runway achieves efficacies over 100 lm/W with flicker-free dimming to 0.1 percent. Beam options range from 10°×10° to 120°, and controls include 0–10 V, DMX, and DALI/DALI-2. The system features seamless connections, Quick-Track™ mounting, 180° rotation, UL/cUL certification, and two-step MacAdam consistency.
MORE DESCRIPTION
SPECIFICATIONS

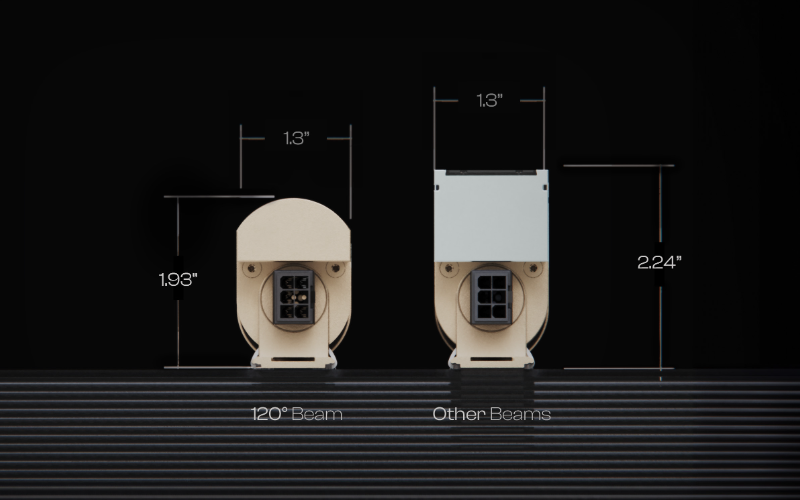

  • Dimensions
    W: 1.3"
    L: Run length (Ft)
    H: 2.87"2.93"2.43"2.75"2.25"1.95"
  • Light Source
    LED
  • CCT/Color
    2700K Dim to Warm3000K Dim to Warm3500K Dim to Warm
  • CRI
    92
  • Watt(Approx)
    2 W/Ft3 W/Ft4 W/Ft5 W/Ft6 W/Ft7 W/Ft8 W/Ft9 W/Ft10 W/Ft11 W/Ft12 W/Ft
  • Lumens(Approx)
    135 Lm/Ft228 Lm/Ft286 Lm/Ft401 Lm/Ft504 Lm/Ft606 Lm/Ft733 Lm/Ft970 Lm/Ft1078 Lm/Ft1174 Lm/Ft1277 Lm/Ft
  • Optics
    IndirectGrazingFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    0-10VLutron Hi-lume EcoSystem (LDE1)DMX
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CULMade in USARoHS
  • Environment
    Damp
  • Mounting Type
    Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
