i2Systems
Runway® Cove System Static White.
Configure
Add to project




RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The Runway™ linear LED system delivers precise wall grazing, washing, and accent lighting with a four-part optical engine that ensures uniform, striation-free illumination at setbacks as small as ⅛ inch. It is available in Static White from 2700 K to 6500 K, WarmDim from 1850 K to 3000 K, and Tunable White from 1850 K to 6500 K, all with CRI 92+ and an optional 98 CRI.
Operating on 120–277 VAC with power densities from 2–12 W/ft, Runway achieves efficacies over 100 lm/W with flicker-free dimming to 0.1 percent. Beam options range from 10°×10° to 120°, and controls include 0–10 V, DMX, and DALI/DALI-2. The system features seamless connections, Quick-Track™ mounting, 180° rotation, UL/cUL certification, and two-step MacAdam consistency.
Operating on 120–277 VAC with power densities from 2–12 W/ft, Runway achieves efficacies over 100 lm/W with flicker-free dimming to 0.1 percent. Beam options range from 10°×10° to 120°, and controls include 0–10 V, DMX, and DALI/DALI-2. The system features seamless connections, Quick-Track™ mounting, 180° rotation, UL/cUL certification, and two-step MacAdam consistency.
MORE DESCRIPTION
SPECIFICATIONS

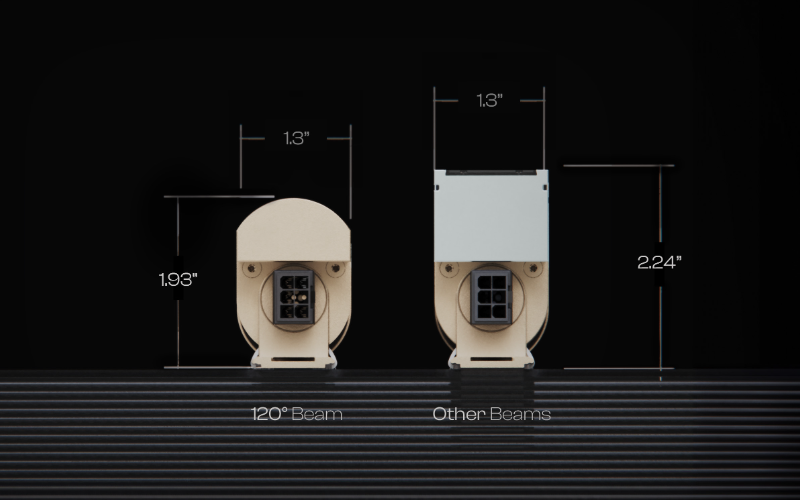

- DimensionsW: 1.3"L: Run length (Ft)H: 2.87"2.93"2.43"2.75"2.25"1.95"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K4500K5000K5700K6500K
- CRI92 83
- Watt(Approx)2 W/Ft3 W/Ft4 W/Ft5 W/Ft6 W/Ft7 W/Ft8 W/Ft9 W/Ft10 W/Ft11 W/Ft12 W/Ft
- Lumens(Approx)135 Lm/Ft228 Lm/Ft286 Lm/Ft401 Lm/Ft504 Lm/Ft606 Lm/Ft733 Lm/Ft970 Lm/Ft1078 Lm/Ft1174 Lm/Ft1277 Lm/Ft
- OpticsIndirectGrazingFloodWide Flood
- AdjustableAdjustable
- Dimming0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULMade in USARoHS
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
