iGuzzini

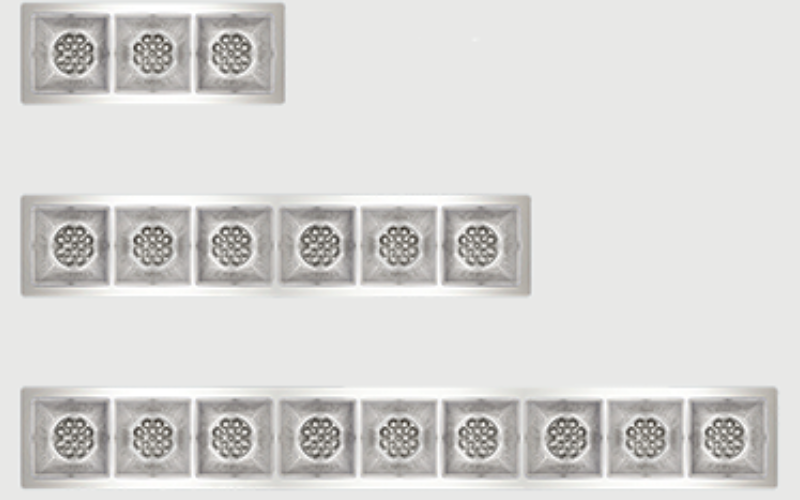

ICRY6. Crystal Oval 6 Cells.
Configure
Add to project
RESOURCES
DESCRIPTION
Crystal delivers preciousness to the ceiling and throughout any space. The minimal linear form combines with the rich finish to create a magical play of light
reflections, even when not in use. The new patented Opti Diamond optic is the result of a careful study of materials and engineering that optimize the catadioptric principle, producing an extraordinary brilliance, visual comfort and high efficiency.
reflections, even when not in use. The new patented Opti Diamond optic is the result of a careful study of materials and engineering that optimize the catadioptric principle, producing an extraordinary brilliance, visual comfort and high efficiency.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 14.8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)18.4 W
- Lumens(Approx)2309 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago PlenumRemodel
- Housing Depth3 3/4 ''3 5/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeICRY6-O
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
