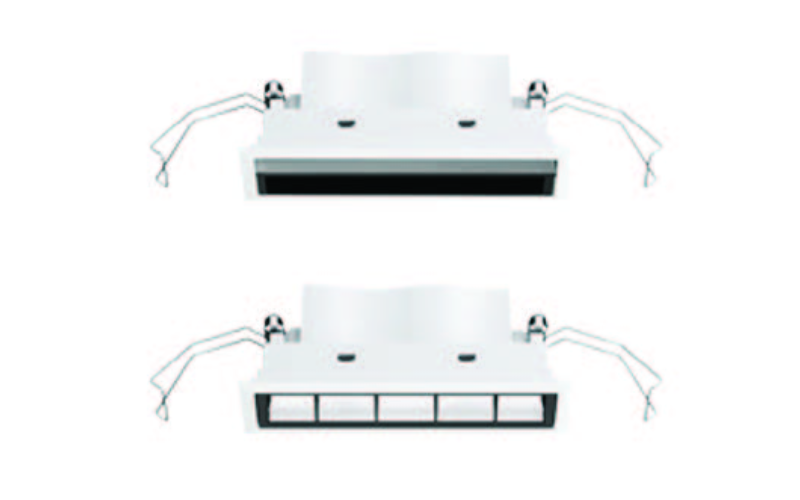

ILB05. Laser Blade Wall Washer 5 Cells Trimless - NEW CONSTRUCTION WITH HOUSING - INTEGRAL.
Configure
Add to project
RESOURCES
DESCRIPTION
Laser blade offers miniaturized dimensions with high performance acrylic diffuser integrated in a polycarbonate baffle for maximized visual comfort and a die-cast aluminum heat sink. The special configuration of this optical system delivers an assymetrical wall washing distribution.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/16"L: 5 1/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI92
- Watt(Approx)12.6 W
- Lumens(Approx)420 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingNew ConstructionChicago Plenum
- Housing Depth3 1/2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeILB05-I-WW-TL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
